| ब्रांड नाम: | DONJOY |
| मॉडल संख्या: | NO.VAQ100Q1 |
| न्यूनतम आदेश मात्रा: | Negotiation |
| कीमत: | USD20-100/SET |
| पैकेजिंग विवरण: | Carton, Wooden Case |
| भुगतान की शर्तें: | T/T,L/C, Credit Card |

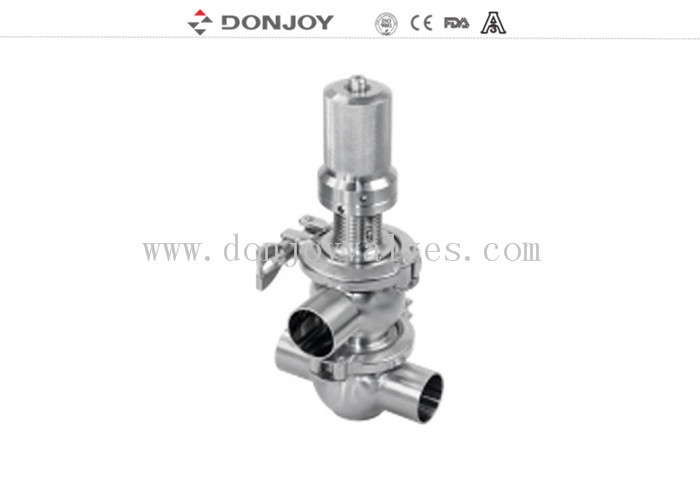

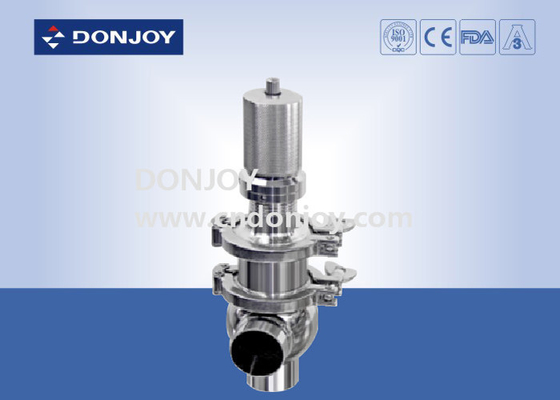

Donjoy Pressure Release Valve/ Pressure safety valves
Quick Detail
Pressure Safety Valve, Over flow Valve ,Pressure spring adjustable
Type: Pneumatic quick release safety valve
Specification:
|
Product Name: |
1"-4"Pneumatic Welded Quick-Release Safety Valve Safety Over Flow Valve Stainless Steel for Diary Food |
|
Valve Body Material: |
SS304 or SS316L |
|
Seal Material: |
EPDM,NBR,FPM |
|
Max.Working Pressure: |
8Bar 116PSI |
|
Max. Working Temperature: |
120 degree C |
|
Availably size: |
DN25-DN100 or 1"-4" |
|
Availably connection: |
Flange,Clamp,Welded |
|
Availably standard: |
DIN,INCH,IDF,3A,SMS |
|
Pressure control : |
adjustable by spring |
|
Max working pressure |
0-3 bar/0-6 bar/0-10 bar/0-43,5psi/0-87psi/0-145psi |
|
Certificate: |
FDA,CE |
APPLICATION
1.Sanitary safety valve is a sanitary stainless steel safety valve, with safety design for equipment protection. It is installed in the discharge pressure loop in order to protect pipelines, pumps, fittings, and tanks, etc...
2.It is widely used in food, beverage, diary, pharmaceutical and beer industries.
OPERATING PRINCIPLES
1.Sanitary safety valve calibrates a specific pressure by adjusting the gland nut of the spring.Calibration pressure is a maximum safe pressure value fixed in order to avoid equipment damage. Under normal working pressure, the valve is closed. When the pressure in the pipe system exceeds the calibration pressure, the valve is open. Thus, the pressure in the pipe system is released and the pipeline and equipment are protected.
2.This model safety valve is pneumatic operated. It is equipped with a pneumatic actuator, which is convenient to carry out CIP cleaning to safety valve and pipelines.
Product drawing
Tag: Safety pressure valves, PRV, Donjoy valves
