| ब्रांड नाम: | DONJOY |
| मॉडल संख्या: | NO.VJZ200S1 |
| न्यूनतम आदेश मात्रा: | Negotiation |
| कीमत: | बातचीत योग्य |
| पैकेजिंग विवरण: | carton box |
| भुगतान की शर्तें: | T/T, LC, Credit Card |

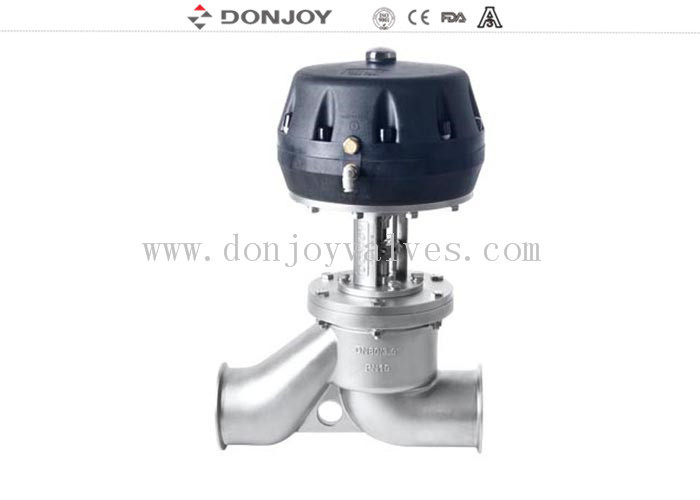

High Performance SS316L Globe Valve With Clamped / Automatic Control System
specifications:
| Product Name: | SS316LStainless steel handle globe Valve, Control Valve With Clamped, automatica control system |
| Valve Body Material: | CF8M/316L,CF8/304 |
| Seal Material: | EPDM |
| Working Pressure: | 8 Bar, 10Bar(option). |
| Max. Working Temperature: | 120 degree ,180Degree(Option) |
| Availably size: | DN10-DN80,1/2"-3" |
| Availably connection: | Thread,Weld,Clamp,BSP/BSP/NPT |
| Operate: | Manual |
| Certificate: | FDA,CE,ISO |
Description
A new generation of high purity design of the angle seat valve
1. No dead angle, no retention to meet the requirements of all kinds of health.
2. Advantages: The spool without bolt, without considering the risk of damaging other equipment because of bolt dropping;
3. Temperature: maximum temperature up to 200 (depending on the seal type)
4. Seal: elastic shaft seal design, embedded spool design.

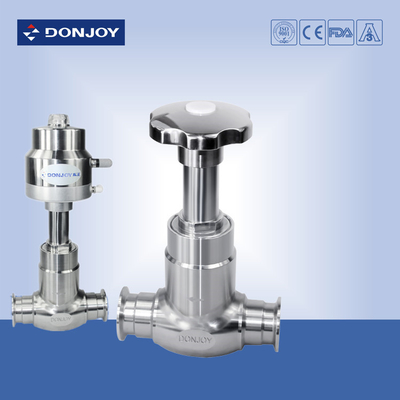

Operation Options for Globe Valve
1. Manual: Plastic handwheel, Stainless steel Wheel,Fine-turning hand wheel
2. Pnuematice: Plastic and stainless steel actuators
3. Control Head: Valve Positioner, Process controller, C-Top, Mini C-Top,Position Sensor
Applications:
Globe valve is a general switch in the automactic control system is widely used in printing, dyeing,bleaching, food,washing, chemical, water treatment,pharmacy and other automated machinery and equipment. It is featured with water hammer protection. Noise-free, reliable sealing performance.
Operationg Principles
1. Globe valve are operated automatically by a single-acting or a double-acting pneumatic acutor. By supplyiing compressed air, the shaft is moved to place the valve in the “open” or “closed” position.
2. The 180degree rotation of the pneumatic cylinder to realize the interchange of normally open and normally closed.
Tag : Globe valves, Sanitary globe valve, Donjoy valves.
