| ब्रांड नाम: | DONJOY |
| मॉडल संख्या: | NO.ERK311 |
| न्यूनतम आदेश मात्रा: | Negotiation |
| कीमत: | बातचीत योग्य |
| पैकेजिंग विवरण: | Carton, Wooden Case |
| भुगतान की शर्तें: | T/T,L/C, Credit Card |

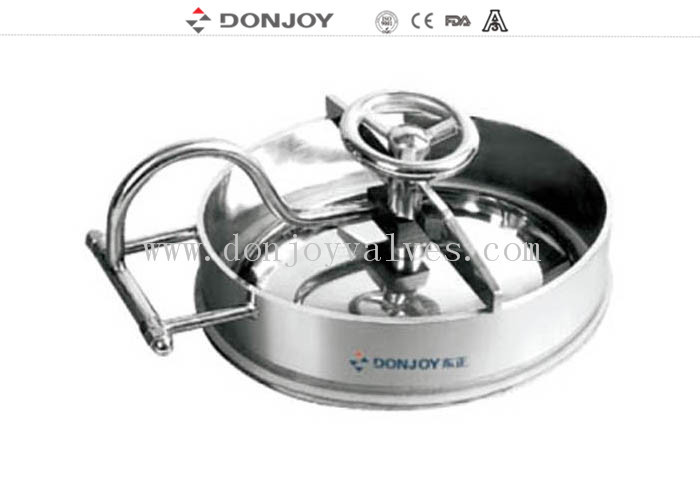

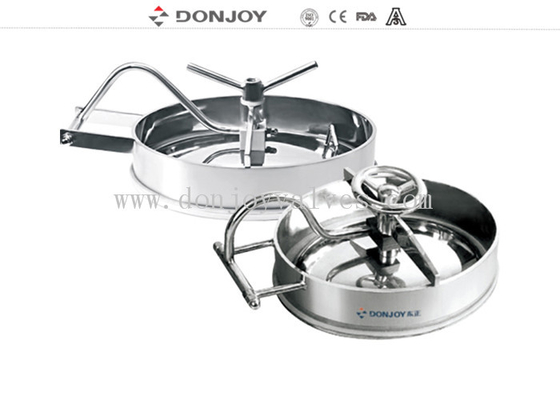

Hygienic Elliptical Tank manway Stainless Steel SS304 SS316L 535mm*435mm
Drawing
| Size | H | L1 | L2 | T |
| 435*335 | 75 | 435 | 335 | 8 |
| 530*430 | 100 | 530 | 430 | 10 |
| 635*525 | 160 | 635 | 525 | 10 |
Unit:mm
| Size | tolerance range |
| Φ200-Φ350 | ±1.2mm |
| Φ400-Φ600 | ±2mm |
Quick Detail
Manhole Cover,Manway
Size:435*335mm,530*430mm,535*435mm,635*525mm
Type: pressure
Gasket: EPDM,NBR,SILICONE,
HEIGHT:75-80mm,80-90mm,90-100mm,100-120mm,130-160mm
Working Pressure:0.5-3Bar
Polished: Mirror, Mattr, Ra≤0.8μm,Ra≤0.5μm
Handle: Stainless Steel
Specification
Product Name: | Elliptical manhole cover |
Material: | AISI304, AISI316L |
Size: | 435*335mm,530*430mm,535*435mm,635*525mm |
Finish: | Ra ≤0.8um,Mirror, 320Grit, 180Grit, 240Grit |
Connection: | Welded, Flange |
Thickness | Stanadard or customized |
Certificate: | CE, ISO9001/2008, 3A |
Application scope: | Dairy, food, beer, beverage, pharmacy, cosmetic,Oil,Waste water etc |
Packaging Details: | Shrink wrapped - carton - pallet . Or as per the request of customers |
Application
Manhole cover with pressure always used for pressure vessel in the field of food,
beverage, chemical etc. And installation on the side or top of tank.
