| ब्रांड नाम: | DONJOY |
| मॉडल संख्या: | NO.VSJ400N1 |
| न्यूनतम आदेश मात्रा: | Negotiation |
| पैकेजिंग विवरण: | Carton, Wooden Case |
| भुगतान की शर्तें: | T/T,L/C, Credit Card |
DN100 sight glass stainless steel 304 with weld ends flow sanitary four way sight glass
Quick Detail
No retention four-way Sight Glass
Size:DN25-DN100,1"-4"
Gasket: EPDM, NBR,FPM
Working Pressure:10 Bar
Specification
|
Product Name: |
Sanitary Sight Glass |
|
Valve Body Material: |
SS304/SS316L/1.4301/1.4404 |
|
Seal Material: |
EPDM,NBR, FPM |
|
Sight glass: |
tempered glass |
|
Max.temperature: |
-10 to 150 degree |
|
Battery: |
rechargeable battery(220V Battery for 18650); can use AC220V/110V power supply lighting. |
|
Available connection: |
Clamp, Thread, weld, DIN,SMS, IDF |
|
Available standard: |
DIN, SMS, 3A, ISO |
|
Certificate: |
3A/54-02 (1580), PED/97/23/EC, FDA.177.2600, ISO9001/2008 |
|
Application scope: |
Dairy, food, beverage, pharmacy, cosmetic, etc |
|
Structure: |
Four-way sanitary sight glass |
|
Power: |
Cable power or wireless power is optional |
Drawing
Application
The no retention four-way sight-glass is comprised of stainless steel frame and glass. Through it, the operator can observe the flowing of the liquid substance clearly and precisely in the fields of flood, cosmetic, pharmaceutical and fine chemicals industries
Technical Feature
All available size can be installed on the equipment through clamps
No retention, zero dead angle, high light, white cold light source, waterproof, explosion-proof. Cable power supply AC 110V/220V, DC24V Wireless power supply, one charging can be used for 2-3 months(depending on the frequency of use)
Rechargeable battery type, connection cable type with a stainless steel shell, DC 24V

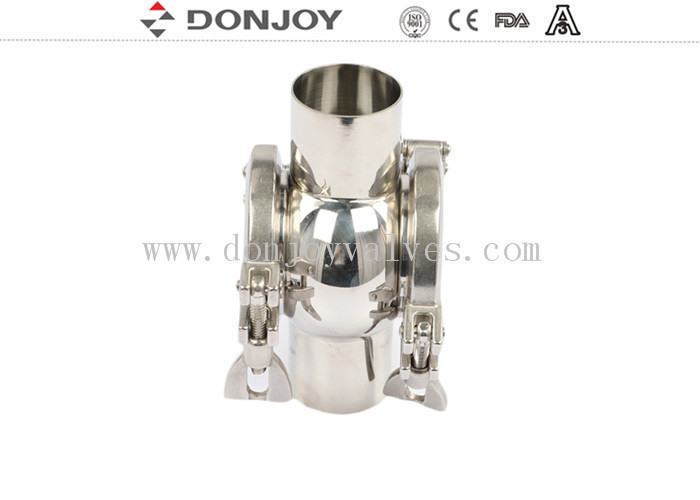

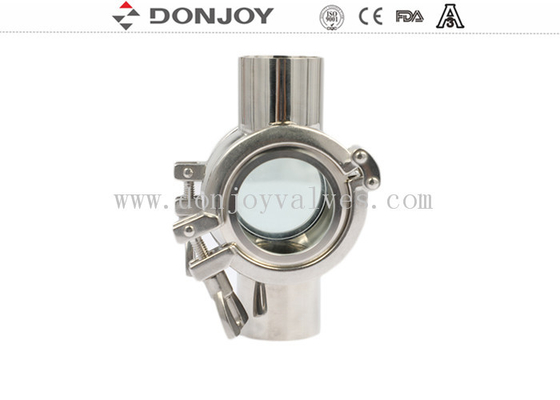

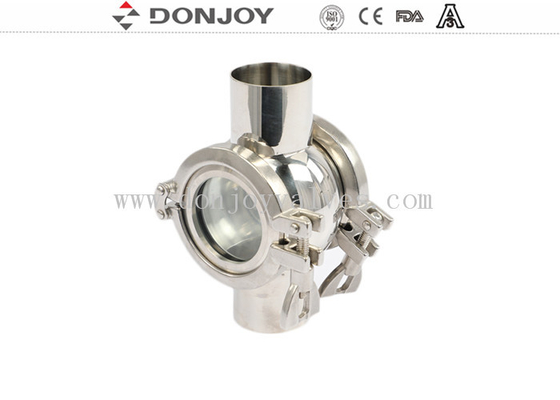

Product display
