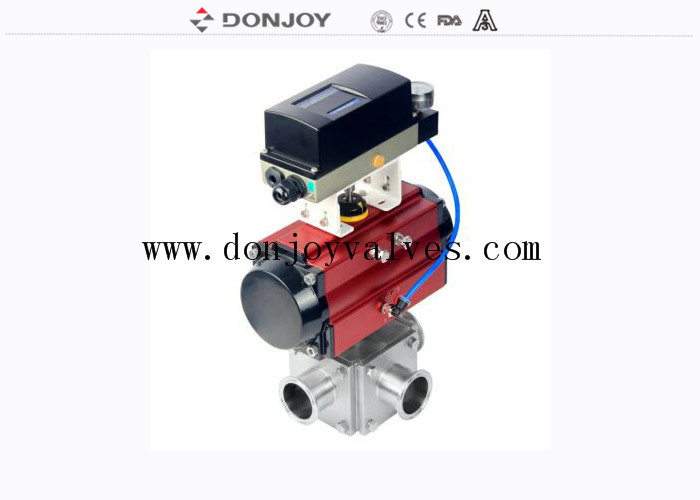

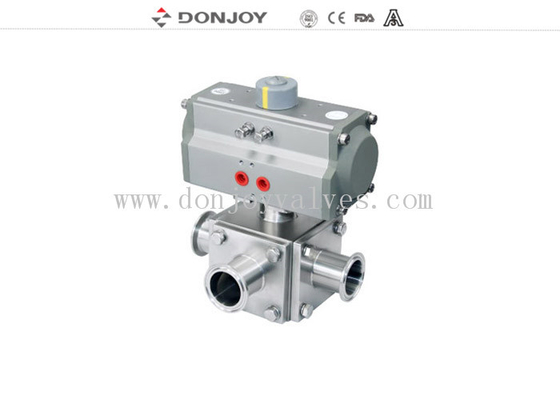

Sanitary Ball Valve Aluminum pneumatic actuator three-way non-retention with control head
Description:
Size: 1/2"-4", DN10-DN100
Input 0/4-20mA, 0-5/10V
Output: 0/4-20mA, 0-5/10V(position sensor)
Bus:DEVICE NET BUS
Air/spring, Air/Air
Specification
| Product Name: | Sanitary Ball Valve Aluminum pneumatic actuator three-way non-retention with control head |
| Valve Body Material: | SS304 or SS316L |
| Seal Material: | PTFE |
| Max. Working Pressure: | 10Bar |
| Max. Working Temperature: | 150 degree C |
| Availably size: | DN25-DN100 or 1" - 4" |
| Availably connection: | Weld,Clamp,Thread, Flange |
| Availably standard: | DIN,SMS,3A |
| Ball Type: | Directly |
| Operated: | Manual,Pneumatic,Electric,control Head |
| Certificate: | FDA,CE,3A,ISO |
| Packaging details | Standard export package or ar per the request of cutomers |
Applications:
This ball valve is widely used in the field of biopharmaceutical, brewing industries, and food beverage, food processing industries. The two kinds of port can be interchangeable on site and guarantee no dead angle, no retention.
Technical Feature
All-inclusive tee design, no stranded high clean, meet the requirement of CIP and SIP sterilization and cleaning,and heat resistance of 180degree, automatic compensating sealing design, the advantages of samll torque.
Competitive Advantage:
Donjoy With advanced technology, excellent quality and perfect after-sales service system, assessed for the Provincial Famous Trademark, Ttechnology Enterprises, Innovative Enterprises, Patent Model Enterprises, R & D Center, AAA Credit Enterprises.
“DONJOY is the only company that pass nine series of products by American 3A certification organization in Asian sanitary pumps and valves field.”
Working Diagram
Tags: Non retention ball valve , sanitary valves,
