| ब्रांड नाम: | DONJOY |
| मॉडल संख्या: | NO.VQY100S2 |
| न्यूनतम आदेश मात्रा: | Negotiation |
| पैकेजिंग विवरण: | WOODEN CASE, CARTONS |
| भुगतान की शर्तें: | T/T,L/C, Credit Card |

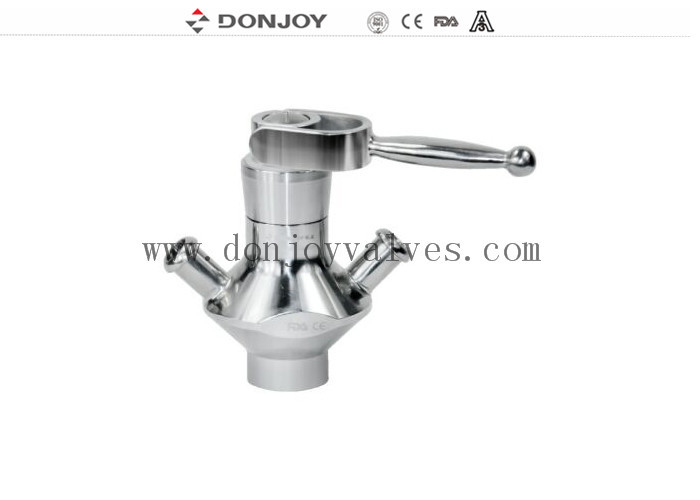

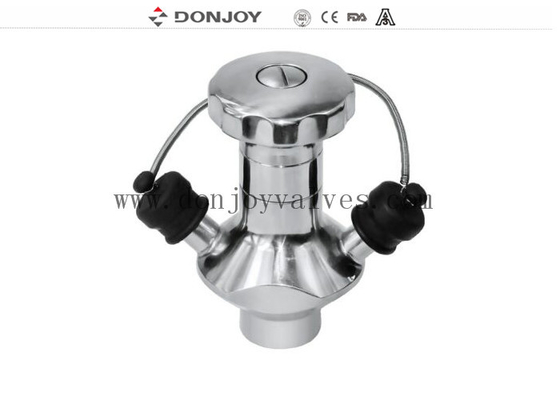

SS316L turning handle Aseptic and sterilizable sample valve with weld connection
Quick Detail
Sampling Valve
Size: weld OD40MM
Type: Automatic return type smpaling valve
Gasket: EPDM,PTFE
Working Pressure:6Bar
Polished: Mirror, Mattr, Ra≤0.8μm,Ra≤0.5μm
Handle: Turing handle, Removable handle
Specification
|
Product Name: |
SS316L Automatic Aseptic and sterilizable sampling valve |
|
Material: |
AISI304, AISI316L |
|
Size: |
weld OD40MM |
|
Finish: |
Ra ≤0.8um,Mirror, 320Grit, 180Grit, 240Grit |
|
Connection: |
Welded |
|
Standard: |
DIN,3A,SMS,ISO |
|
Certificate: |
CE, ISO9001/2015, 3A |
|
Application scope: |
Dairy, food, beer, beverage, pharmacy, cosmetic,Oil,Waste water etc |
|
Packaging Details: |
Shrink wrapped - carton - pallet . Or as per the request of customers |
Application : The aseptic sampling valve is applied to beer, milk, beverage, fruit juice, pharmacy industries,
Aseptic sampling valve is made from three parts: valve body, valve head, and one piece of the diaphragm. A rubber diaphragm valve is put at the axis of the valve head, acting as an extensible valve core.
Open(sampling) Close(Steriling)
Operating Principles
The aseptic sampling valve is designed for sterilization before and after each sampling.
Open: Sampling- the manual valve is opened by rotating the handle( adjustable valve) or by activating the lever (on/off valve). The stem and the membrane are then retracted, allowing liquid to pass
Closed : Sterilizing- the build - in spring closes the valve and keeps the channel open between the hoses through reverse process in order to sterilize. If using by steam, a small pressure relief valve(optional) on the outlet is recommeded.
Standard Design : The aseptic sampling valve consists of three parts, a valve body, a handle and a menbrane. The rubber menbrane is placed on the stem of the valve and works as a stretchable plug.
Relate products
Tag : Sample valve, Sanitary valve, Donjoy Valve
