| ब्रांड नाम: | DONJOY |
| मॉडल संख्या: | NO.EGL310 |
| न्यूनतम आदेश मात्रा: | Negotiation |
| कीमत: | बातचीत योग्य |
| पैकेजिंग विवरण: | Carton, Wooden Case |
| भुगतान की शर्तें: | T/T,L/C, Credit Card |

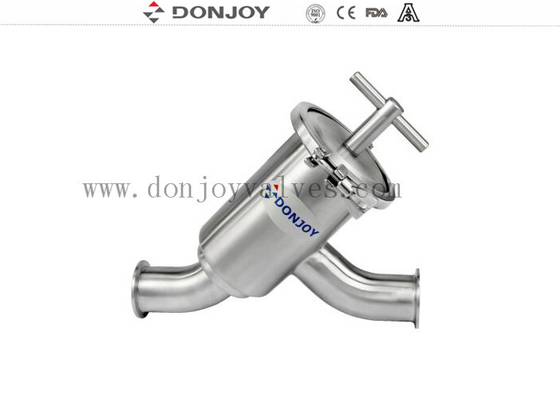

SS316L Y Type filter with 100mesh / Food grade strainer
Quick Detail
Sanitary filter/Strainer
Materials: SUS304/SUS316L, 1.4301/1.4404, AISI304/AISI316L
Size:1"-4"
Working tempressure: -10℃ to 120 ℃(EPDM), +140℃ (SIP,30 Minites)
14℉ to 248℉
Max pressure: 10Bar,145PIS
Screen:30-300meshes
Screen Hole:0.5mm-2mm
Surface: Inside RA≤0.8um,Outside: Mirror Polished
Connection: Clamped, Welded, Thread
Standard: DIN,3A, RJT,SMS,ISO,IDF
Gasket: Silicone, FPM, NBR(FDA 177.2600)
Specification
|
Product Name: |
Y type strainer, Y type FIlter SS316L,1 inch to 4 inch use to the pipeline Inlet |
|
Material: |
AISI304, AISI316L |
|
Size: |
1-4" |
|
Finish: |
Ra ≤0.8um,Mirror, 320Grit, 180Grit, 240Grit |
|
Connection: |
Welded, Threaded, Clamped |
|
Standard: |
DIN,3A,SMS,ISO |
|
Certificate: |
CE, ISO9001/2008, 3A |
|
Application scope: |
Dairy, food, beer, beverage, pharmacy, cosmetic,Oil,Waste water etc |
|
Packaging Details: |
Shrink wrapped - carton - pallet . Or as per the request of customers |
Operating Principles:
The filter is a equipment to remove a small amount of solid particles in the liquid, protect compressor,pump,instrument and other equipment can work normally. When need to be clean,as long as you Take out the dismountable filter cartridge, to reload after processing,so it's more convenient to ues or maintain. This series of filters have advantages for compact structure, big filter ability, small pressure loss, the applicable scope is wide, easy maintenance, price is low and so on
Payments Term:
Total amount <=1000USD, 100% in advance. Total amount>=1000USD, 50% T/T in advance ,balance before shippment.
Delivery time: For the samples within 7 days. For the large order always with 15 days.
Term of conditions: EXW PRICE, FOB, CIF....
Metal Mesh
| Mesh | B(MM) | Useful Surface(%) |
| 30 | 0.55 | 48 |
| 40 | 0.4 | 46 |
| 60 | 0.3 | 52.6 |
| 80 | 0.2 | 42 |
| 100 | 0.15 | 36.2 |
| 165 | 0.1 | 45.4 |
Perforate Plate
| A(MM) | Useful Surface(%) |
| 0.5 | 15 |
| 1 | 28 |
| 1.5 | 33 |
| 2 | 30 |
| 3 | 33 |
| 5 | 46 |
If you have any problems, Please do not hesitate to contact us.
