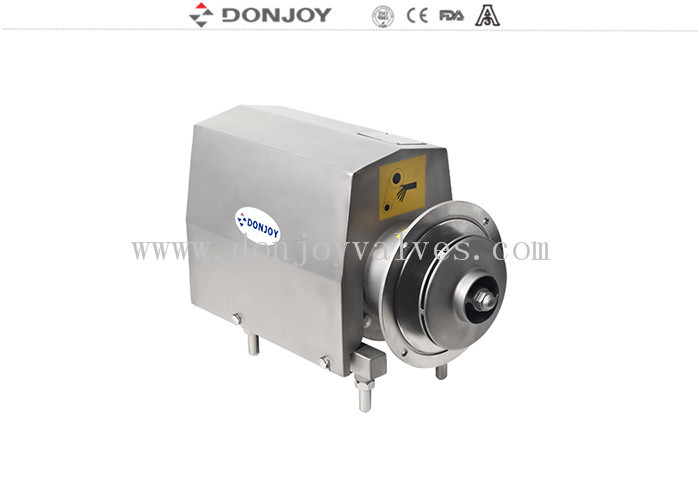

BS-6, SS316L Sanitary centrifugal pump close impeller for food and beer trasfer for fluid control
Quick Detail
Trasfer Pump, BS pump, comestic pump, water pump
Description
Options
1. Mechanical seal: SIC/SICE/EPDM, TC/TC,EPDM
2. Gasket: viton/NBR
3. Connection: Thread, Clamp, Flange(DIN,SMS,RJT,IDF)
4. Motor: 2900,1450,3600Min/1,50HZ,60HZ
5.Single Mechanical seal ( Standard)
6.Flush double mechnical seal(option)
Specifications
|
Product Name: |
BS-6,SS316L Sanitary centrifugal pump Close impeller for food and beer trasfer |
|
Valve Body Material: |
SS304 / SS316L / 1.4301 / 1.4404 |
|
Seal Material: |
EPDM (Standard, FDA approval) FPM(Viton) and NBR |
|
Max. Flow: |
150 m3/h |
|
Max. Speed: |
3600 min-1 |
|
Max. Head: |
70H(m) |
|
Max. Working Pressure: |
7 bar/99 PSI |
|
Max. Working Temperature: |
120 °C |
|
Mechanical seal: |
SIC/SiC/EPDM(Standard), C/SIC, TC/TC |
|
Sealing type: |
Flushed double mechanical seal/single mechanical seal(standard) |
|
Motor power: |
1.1kw, 1.5kw, 2.2kw...30kw |
|
Voltage: |
110V, 220V, 380V,630-690V |
|
Motor: |
ABB/domestic/SIEMENS |
| Motor type: | Optional |
|
Motor Frequency: |
50HZ, 60HZ |
|
Surface treatment: |
Inner polished and Sandblast outside |
|
Application structure: |
KS/BS |
|
Availably connection: |
Tri-Clamp, Thread, Flange |
|
Availably standard: |
DIN, SMS, 3A, RJT, ISO/IDF |
|
Operated: |
Electic |
|
Low discharge option : |
Low discharge/diaphragm valve/ball valve/butterfly valve |
|
Certificate: |
3A/54-02 (1580), PED/97/23/EC, FDA.177.2600, ISO9001/2008 |
|
Application scope: |
For processing fluid |
Applications
1. This pump is manufactured in stianless steel and with a shrouded motor.
2.Sanitary and cost-efficient design makes it perfect for the daries, beverages, foods-processing,pharmaceutical and fine chemical industries.
Installation
options
Low discharge in the pump head: Diaphragm valve / ball valve / butterfly valve
Mechanical seal: SIC / SIC / EPDM
Connection way of Inlet & Outlet: thread, weld and flange
