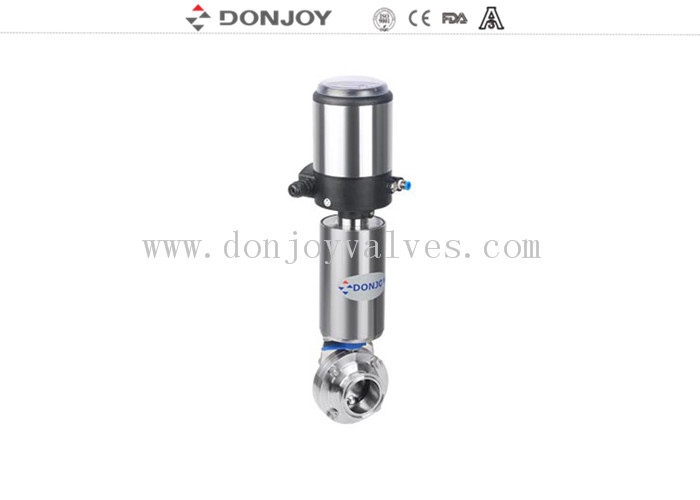

stainless steel sanitary pneumatic threaded butterfly valve with C - TOP for fluid process and control
Specifications
|
Product Name: |
stainless steel sanitary pneumatic threaded butterfly valve with C - TOP for fluid process and control |
|
Valve Body Material: |
SS304 / 316L |
|
Seal Material: |
EPDM (standard) FPM/SILICON/NBR, FDA177.2600 |
|
Max Working Pressure: |
5Bar |
|
Max.Working Temperature: |
120 degree C |
|
Availably size: |
1/2''-12'', DN10-DN300 |
|
Availably connection: |
Clamp/welding/thread/special connection |
|
Availably standard: |
3A/DIN/SMS/RJT/ISO/IDF |
|
Operated: |
Manual,Pneumatic, Electric |
|
Control: |
Smart valve positioner / C-TOP control / position sensor |
|
Certificate: |
3A/54-02 (1580), PED/97/23/EC, FDA.177.2600, ISO |
|
Application scope: |
Dairy,food, beverage, pharmacy, cosmetic, etc |
| Operation feature: | Manual and pneumatic could be displaced. |
| System application: | Cleaning process and water source management |
Handle selection
Two-position handle;
three-position handle;
four-position pull handle;
multi-position plastic handle;
multi-position stainless steel handle;
Connection
Clamped, welded and threaded etc.
Packaging Details
Bubble pack for each valve.
Outside packing are carton or plywood cases.
Or as per the request of customers.
Delivery details
Usually within 20 days after receiving T/T down payment.
