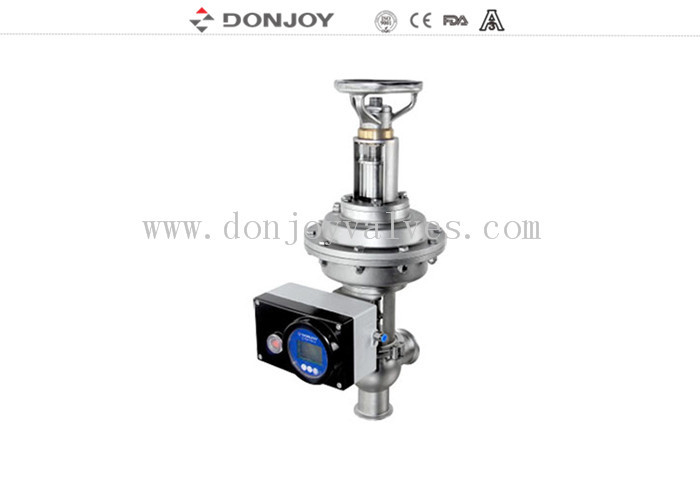

Pneumatic thin film Regulating Valve Control Valve with intelligent positioner
Specifications:
|
Product Name: |
Pneumatic thin film Regulating Valve Control Valve with intelligent positioner |
|
Valve Body Material: |
AISI304, AISI316L |
|
Seal Material: |
EPDM |
|
Working Pressure: |
10Bar |
|
Max. Working Temperature: |
120 degree C |
|
Available size: |
DN25 - DN300 or 1" - 12" |
|
Available connection: |
DIN / SMS / RJT / IDF / ISO connection |
|
Air Operation: |
can be configured to intelligent / C-TOP controller |
|
Operate: |
Pneumatic |
|
Certificate: |
FDA, CE |
|
Feature |
Precise positioning |
|
Advantage |
Diaphragm - type pneumatic actuator |
Description:
Options for Regulating Valve
Heat Jacket type regulating valve
Diaphragm-Aseptic Regulating valve
Non-Retention Regulating Valve
Aseptic Regulating valve
Deadline regulating valve
Manual Regulating valve
High pressure actuator regulating valve
Body Combination Type: 20,30,11,12,21A,22A
Applications:
A regulating valve is a pneumatic proportional valve, which is an equipment to control flow. It's widely used in the dairy, food, beverage, pharmacy and chemical industry.The most important application is in pressure control, flow control, level, ect.
Operating Principles
The position of valve tapered plug is adjusted by position.So as to control flow rate through the valve(PD).Besides, intelligent process controller can control position and flow rate (PID).
Competitive Advantage
“DONJOY is the only company that passes nine series of products by American 3A certification organization in Asian sanitary pumps and valves field.”
Technical advantages:
Compared with other actuators, it could be installed on a lower height, with simple installation,it could bear higher pressure, which is suitable for cut-off regulating valve.Its effect of water hammer-resistant is ideal, and it's convenient to install valve positioner.
Technical data
|
SIZE |
Q |
H |
W |
|
200 |
200 |
220 |
263 |
|
286 |
286 |
256 |
263 |

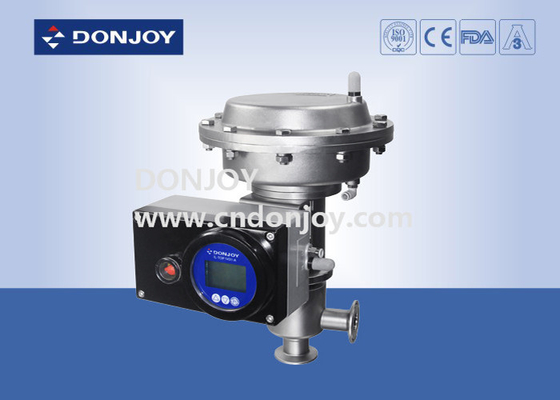

Product display
Tag: Donjoy Sanitary valves, Diaphragm actuator Valve, High pressure seat valve
