| ब्रांड नाम: | DONJOY |
| मॉडल संख्या: | NO.ERK211 |
| न्यूनतम आदेश मात्रा: | Negotiation |
| कीमत: | USD54-USD364/PC |
| पैकेजिंग विवरण: | Carton, Wooden Case |
| भुगतान की शर्तें: | T/T,L/C, Credit Card |

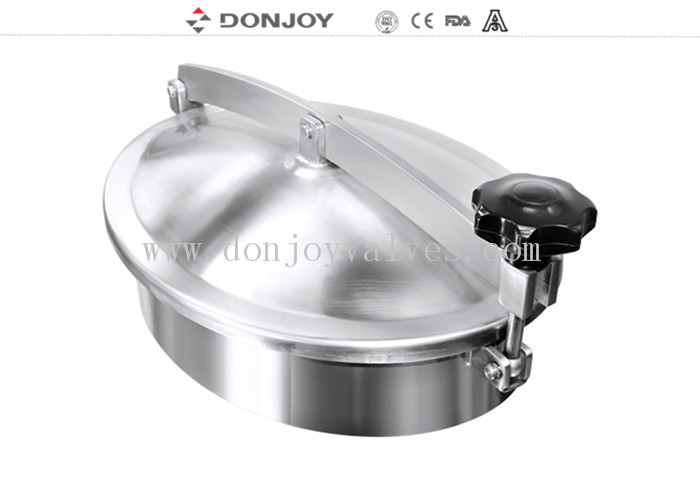

200mm Round Tank Manhole Cover Mirror / Matt Polished Without Pressure
Tag:
Stainless steel vesels Manhole Cover.
Tank top Cover, Tank side Cover
Quick Detail
|
Name: Tank Manhole Cover, Stainless Steel |
Height: 100mm,150mm, 120mm or customer requirement |
|
Type: Round without Pressure |
Polished: Mirror, Mattr, |
|
Size:φ150,200,250,300,350,400,450,500,600 etc |
Place of Origin:Wenzhou,China |
Thinckess: Customized or standard
Materials: 1.4301/1.4404,SUS304/SUS316L,
OEM&ODM service: Avaliable
Handle: Plastic, Stainless Steel
Application:
Non-pressure type manhole cover is widely used in food, wine-producing, beverage, and pharmacy industries and so on. Apply to all kinds of atmospheric container or tank to prevent the leakage. And it is Installation on the top of the vessel, tank etc.
Specification
|
Product Name: |
200mm Round manhole Cover without |
|
Material: |
AISI304, AISI316L |
|
Size: |
200,220,300,350,400,430,450,500,600,800 |
|
Finish: |
Ra ≤0.8um,Mirror, 320Grit, 180Grit, 240Grit |
|
Connection: |
Welded, Flange |
|
Standard: |
DIN,3A,SMS,ISO |
|
Certificate: |
CE, ISO9001/2008, 3A |
|
Application scope: |
Dairy, food, beer, beverage, pharmacy, |
|
Packaging Details: |
Shrink wrapped - carton - pallet . Or as per the request |
Working Principle:
Non-pressure type manhole cover is joined together to the tank by the hinge, it also can let non-pressure type manhole cover free open and close tightness at the range of 120 degree by the handle, so it can be easy for the serviceman to check and to operate.
Design standard:
The difference between non-pressure and pressure type manhole cover is the former can only use under normal pressure, so it is generally have only one fixed hand wheel device, but the sealing is good enough.
Product drawings
Product display
Manway , Sanitary manhole,
