| ब्रांड नाम: | DONJOY |
| मॉडल संख्या: | No.VAQ100S1 |
| न्यूनतम आदेश मात्रा: | Negotiation |
| कीमत: | USD10-100/set |
| पैकेजिंग विवरण: | Carton, Wooden Case |
| भुगतान की शर्तें: | T/T,L/C, Credit Card |
Quick Detail
Pressure Safety Valve, Over flow Valve
Type: Manula, Pnuematic
Specification
|
Product Name: |

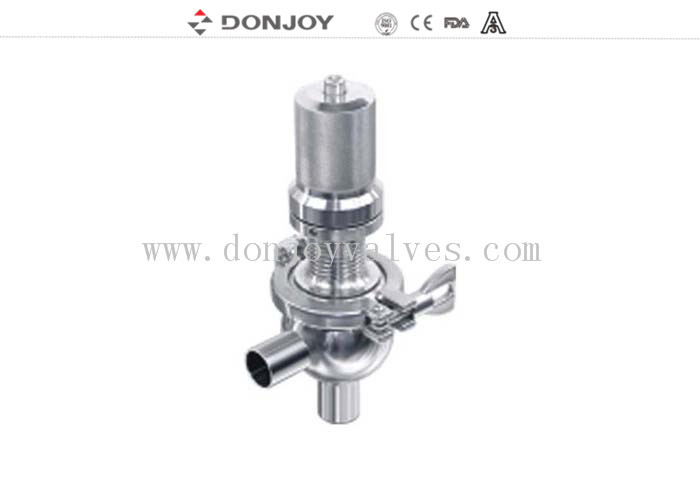

2" SS316Lmanual pressure safety valve, Relief Valve with Weld Connection |
|
Valve Body Material: |
SS304 or SS316L |
|
Seal Material: |
EPDM,NBR,FPM |
|
Max.Working Pressure: |
8Bar 116PSI |
|
Max. Working Temperature: |
120 degree C |
|
Availably size: |
DN25-DN80 or 1” - 3" |
|
Availably connection: |
Flange,Clamp,Welded |
|
Availably standard: |
DIN,INCH,IDF,3A,SMS |
|
Operate: |
Pneumatic ,Maual |
|
Certificate: |
FDA,CE |
Applications:
1. Safety valve is used to protecting pipe,pump from over pressure
2. Sanitary and safe design is to prevent operation danger and equipments break down due to pressure
3. With sanitary design stainless steel, the valvei s best choicefor pretection equipments in diary ,food, beverage, pharmacy and fine chemical industries.
◆Size:1"-4",DN25-DN100
◆KV Value:8.5-180m3/h
◆Max. temperature:-20℃到150℃(depend on seal material)
◆Set pressure:(0-3bar/0-6bar/6-10bar)
◆Material:304/316L
◆Certification: safety valve manufacturing license for special
Operating Principle:
1. Through the spring to adjustable the pressure.
2. When the pressure in the pipe exceeds to the specify pressure, the valve open automatically to make the liquid flow in order to reduce pressure.
Drawing of safety valve

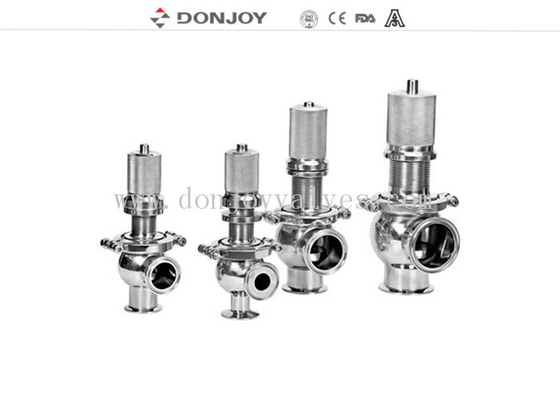

Products
Type: 6Bar safety valve, Manual safety Valve, Pressure safety valve
