| ब्रांड नाम: | DONJOY |
| मॉडल संख्या: | NO.VAQ100Q1 |
| न्यूनतम आदेश मात्रा: | Negotiation |
| कीमत: | USD10-100/SET |
| पैकेजिंग विवरण: | Carton, Wooden Case |
| भुगतान की शर्तें: | T/T,L/C, Credit Card |

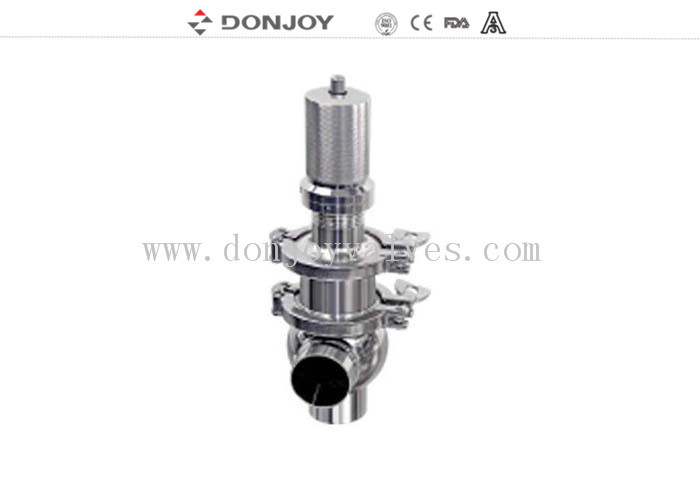

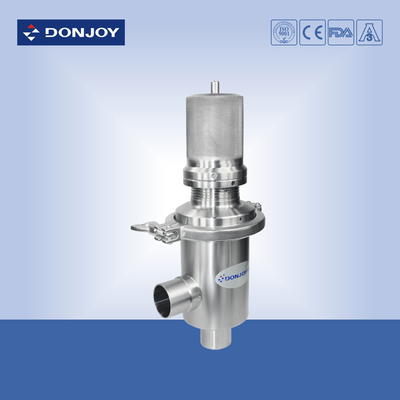

1" 6Bar Pneumatic pressure release valve with Welded Connection
Quick Detail
Pressure Safety Valve, Over flow Valve ,Pressure adjustable
Type: Manula, Pnuematic
Specification
|
Product Name: |
Pneumatic pressure release valve with Welded Connection, SS316L, 1", 6Bar |
|
Valve Body Material: |
SS304 or SS316L |
|
Seal Material: |
EPDM,NBR,FPM |
|
Max.Working Pressure: |
8Bar 116PSI |
|
Max.WorkingTemperature: |
120 degree C |
|
Availably size: |
DN25-DN80 or 1” - 3" |
|
Availably connection: |
Flange,Clamp,Welded |
|
Availably standard: |
DIN,INCH,IDF,3A,SMS |
|
Operate: |
Pneumatic ,Maual |
|
Certificate: |
FDA,CE |
Applications:
1. Safety valve is used to protecting pipe,pump from over pressure
2. Sanitary and safe design is to prevent operation danger and equipments break down due to pressure
3. With sanitary design stainless steel, the valvei s best choicefor pretection equipments in diary ,food, beverage, pharmacy and fine chemical industries.
Operating Principle
1. Through the spring to adjustable the pressure.
2. When the pressure in the pipe exceeds to the specify pressure, the valve open automatically to make the liquid flow in order to reduce pressure.
Drawing of safety valve
Safety valve products
Tag : Safety valve, Donjoy Valve, Overflow valve
