| ब्रांड नाम: | DONJOY |
| मॉडल संख्या: | NO.MINI-VAQ100S1 |
| न्यूनतम आदेश मात्रा: | Negotiation |
| कीमत: | USD 10-100/set |
| पैकेजिंग विवरण: | Carton, Wooden Case |
| भुगतान की शर्तें: | T/T,L/C, Credit Card |

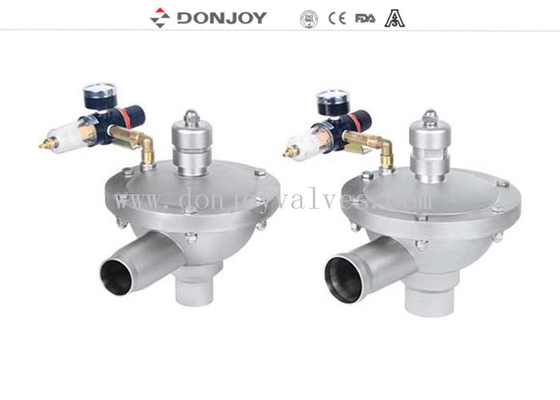

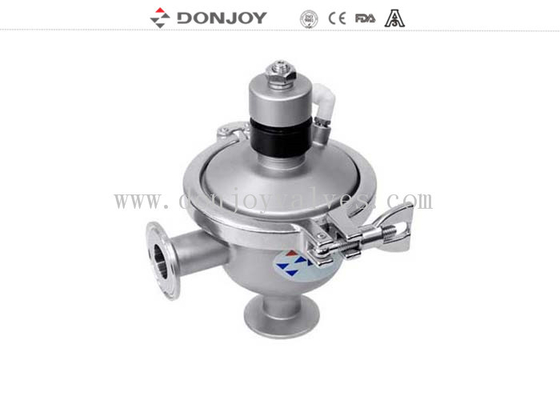

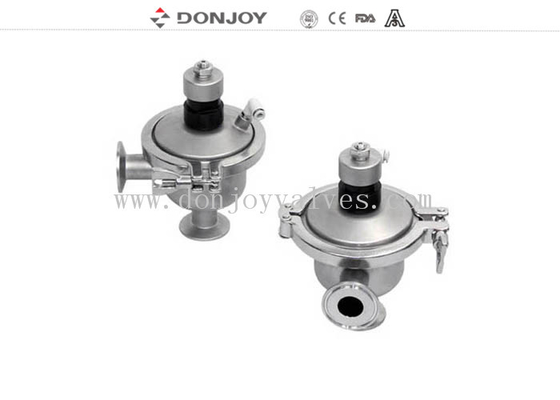

Mini Constant pressure Valve V type with clamped connection EPDM PTFE Gasket
◆Miniature Constant Pressure Regulating Valve is a sanitary constant pressure valve to be applied to the food processing, beverage, pharmaceutical and other areas of the pipeline system.
◆Constant pressure design has two kinds to maintain a constant pressure function selection:
1) V type (inlet constant pressure); maintain constant pressure at the valve inlet. Such design is specially applied at the back of heat-exchanger. It is used as safety valve.
2) A type (Outlet constant pressure): maintain constant pressure at the outlet. Such design is used as the front of filling machine and bottle filling machine.
Quick Detail:
Constant pressure Valve
Type: A type, V type, Mini Type, WITH SUPERCHARGER
Specification
|
Product Name: |
Mini Constant pressure Valve V type with clamped connection, EPDM+PTFE Gasket |
|
Valve Body Material: |
SS304 or SS316L |
|
Seal Material: |
EPDM+ PTFE |
|
Max.Working Pressure: |
8Bar 116PSI |
|
Max. Working Temperature: |
-10~150 degree C |
|
Available size: |
1.5",2",2.5" |
|
Available connection: |
Flange,Clamp,Welded |
|
Available standard: |
DIN,INCH,IDF,3A,SMS |
|
Operate: |
Pneumatic ,Maual |
|
Certificate: |
FDA,CE,ISO,3A |
Applications:
1. Safety valve is used to protecting pipe,pump from over pressure
2. Sanitary and safe design is to prevent operation danger and equipment break down due to pressure
3. With sanitary design stainless steel, the valve is the best choice for protection equipment in dairy ,food, beverage, pharmacy and fine chemical industries.
Operating Principle
1. Through the spring to adjustable the pressure.
2. When the pressure in the pipe exceeds to the specify pressure, the valve open automatically to make the liquid flow in order to reduce pressure.
Drawing
Tag : Constant Valve, Safety valve,
