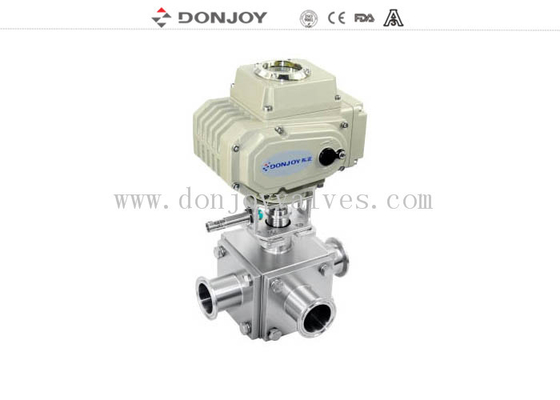

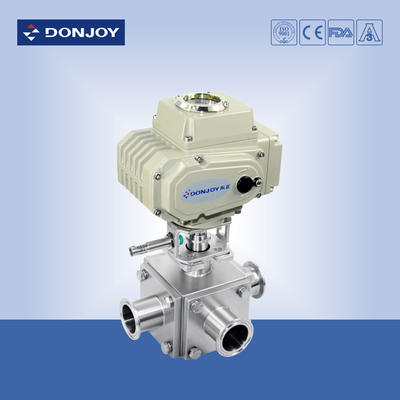

Electric actuator three-way non-retention ball valve with T type and full port
Description:
Type of Non-rentention ball valve
1. Pneumatic 3 way mon-retention ball valve:
Can be Chose: Size: 1"-4"/DN10-DN100 , Optinal position feedback
2. Pneumatic 3 way mon-retention ball valve with positioner
Can be Chose: Size: 1"-4"/DN10-DN100 , Input:0/4-20mA,0-5/10V, Output:0/4-20mA,0-5/10V
Bus: Device Net Bus, Single/ Double Action
3. Pneumatic 3 way mon-retention ball valve with C-TOP
Can be Chose: Size: 1"-4"/DN10-DN100, Power: DC 24V ±10%,Single/ Double Action
PLC connection automatically control
4. Pneumatic 3 way mon-retention ball valve With Mini C-TOP
5. Pneumatic 3 way mon-retention ball valve With Electric actuator
Can be choose : Switching Type or Intelligent( 4-20mA) , Postion Feedback, Power DC.24V
6. Aluminum 3 way mon-retention ball valve with positioner
7. Manual 3 Way Ball Valve
Specification
| Product Name: | Electric actuator three-way non-retention ball valve with T type and full port |
| Valve Body Material: | SS304 or SS316L |
| Seal Material: | PTFE |
| Max. Working Pressure: | 10Bar |
| Max. Working Temperature: | 150 degree C |
| Availably size: | DN25-DN100 or 1" - 4" |
| Availably connection: | Weld,Clamp,Thread, Flange |
| Availably standard: | DIN,SMS,3A |
| Ball Type: | Directly |
| Operated: | Manual,Pneumatic,Electric,control Head |
| Certificate: | FDA,CE,3A,ISO |
Applications:
The hygienic design of the valve is widely used in the field of food processing, beverages, fruit juices,wine, biopharmaceutical and vary flexible body combinations for example, L-port,or T-port can be interchangeable on site inlet, outlet to be any combination of changes can be guarantee dead angle, no retention.
Technical Specification
Size: 1"-4:, DN25-DN100
Materials: 1.4301/1.4404
Gasket: PTFE,TFM(FDA 177.1550)
Temperature: -20°C TO 150°C(Standard)
-30°C TO 200°C(option)
Surface: Internal surface Ra 0.6um, External Surface: Sand Blast
If you need more information,please do not hesitate to contact us.
