| ब्रांड नाम: | DONJOY |
| मॉडल संख्या: | NO.VQD100Q2 |
| न्यूनतम आदेश मात्रा: | Negotiation |
| पैकेजिंग विवरण: | carton box |
| भुगतान की शर्तें: | T/T, LC, Credit Card |

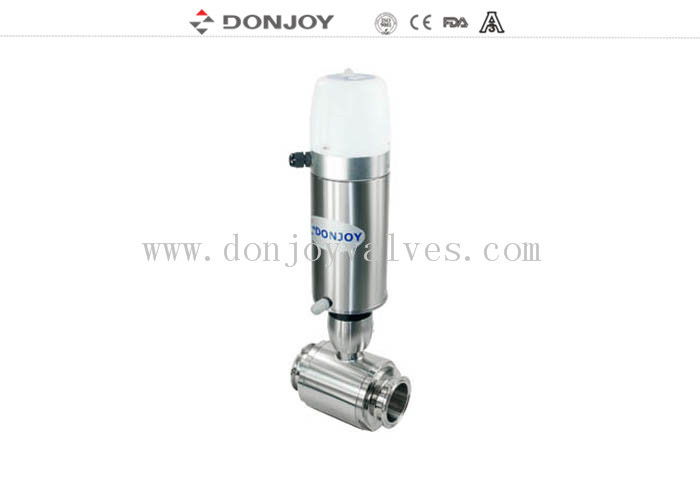

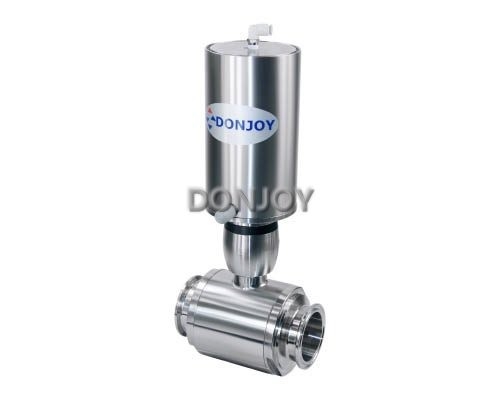

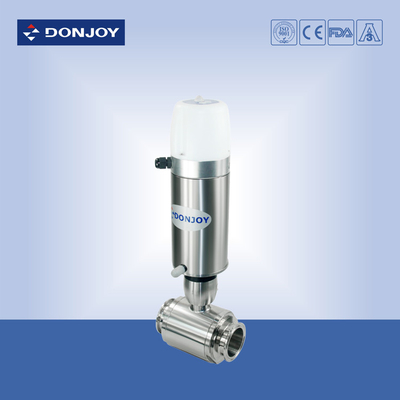

1/2" - 1" Sanitary ball valve Pneumatic Clamp with Mini C-Top
Quickly Detail:
Size:1/2"-4", DN10-DN100
Materials: AISI 304/1.4301, AISI16L/1.4404
Connection: Welding, Clamp, Thread, Flange
Flow pattern: Directly
Seat material: PTFE
It can be installed with pneumatic and electric acuators.
Certificate: CE(PED 97/23/EC) certificate,ISO, FDA
Specification
| Product Name: | Pneumatic Ball Valve with Mini C-Top |
| Ball Core Material: | SS304 or SS316L |
| Valve Stem: | SS304 or SS316L |
| Design: | Dierctly |
| Standard: | 3A, SMS, DIN, ISO,RJT, IDF |
| Size: | 0.5"-4" or DN15-DN100 |
| Connection Way: | Weld, Clamp, Female, Flange or Combinations |
| Nut/Bolt/Stopper Ring: | SS304 |
| Seal Material: | Silicon, EPDM, PTFE,Viton, NBR |
| Inside Surface Treatment: | Ra≥0.4-0.8 um |
| Surface Treatment: | Ra≥0.8-1.6 um |
| Working Temperature: | -20 degree to +120 degree (EPDM) |
| Working Pressure: | 0-10 Bar |
| Packing Details: | Usually bubble pack for each valve within carton box or plywood case, or special packaging upon customer requirements. |
Application
| Food Industry | Yogurt, Ice Cream, Cheese, Soft Drink, Fruit Jelly, Ketchup, Oil, Syrup, Chocolate etc. |
| Daily Chemicals | Facial Foam, Hair Gel, Hair Dyes, Toothpaste, Shampoo, Shoe Polish, Cosmestics etc. |
| Pharmacy | Nutrition Liquid, Chinese Traditional Patent Medicine, Medicine Grease, Biological Products etc. |
| Chemical Industry | Fat, Dissolvent, Resin, Paint, Pigment, Oil Agent etc. |
| Other Industry | Contruction Industry, Plastic Industry, Textile Industry, Coal Floatation Agent etc. |
Design and Feature
1. Free of Maintenances
2. compact and portable
3. small operating torque
4. gasket complies with PTFE FDA 177.2600
5. Hand lever can be installed on the side of the valve body, no matter of the flow direction
6. With Cleaning and drainage port
Shipping method including: Courier (DHL, FEDEX etc), By Airline, By Sea
Price Term including: EXW, FCA, FOB, CIF etc.
Payment: L/C,T/T,WESTERN UNION,MONEY GRAM etc.
If you need more information, please do not hesitate to contact us.
