| ब्रांड नाम: | DONJOY |
| मॉडल संख्या: | NO.VQD100Q2 |
| न्यूनतम आदेश मात्रा: | Negotiation |
| पैकेजिंग विवरण: | carton box |
| भुगतान की शर्तें: | T/T, LC, Credit Card |

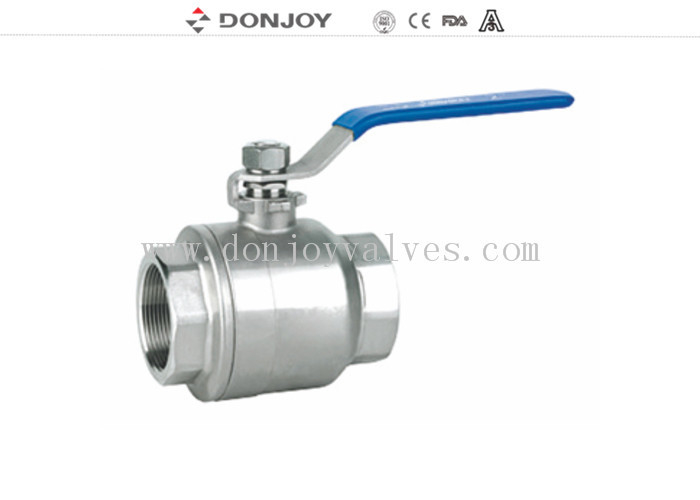

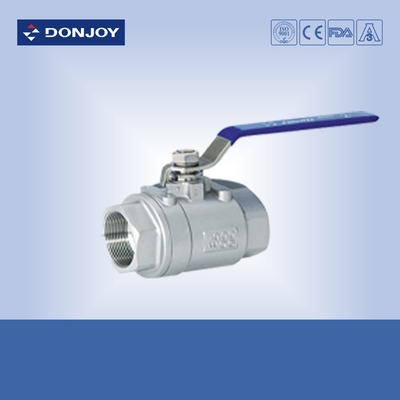

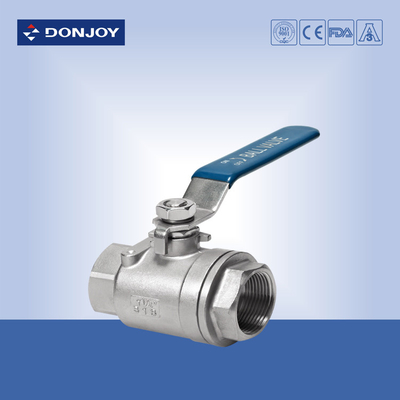

2 Peice Sanitary Ball Valve With ISO mound and handle , BSP Thread
Detail:
2pcs ball valve
Connection: Clamped, Thread, Welding
Standard: DIN,3A,SMS,ISO,IDF, RJT..
Specification
| Product Name: | 2 Peice industrial Ball valve With ISO mound and handle, BSP Thread |
| Valve Body Material: | SS304/316L |
| Seal Material: | PTFE |
| Max. Working Pressure: | 10Bar |
| Max. Working Temperature: | 120 degree C |
| Availably size: | DN25-DN100 or 1" - 4" |
| Availably connection: | Weld,Clamp,Thread, |
| Availably standard: | DIN,SMS,3A |
| Ball Type: | female ball valve |
| Operated: | Manual,Pneumatic,Electric |
| Certificate: | FDA,CE,3A,ISO |
| Packgaing details | standard exporting package or as per the request of customers |
Applications:
The ball valve according to 3A and ASME BPE standard design, mainly used in pharmaceutical, food and beverage, wine, chemical and other industires
Specification
Pressure: PN1.6-6.4Mpa, Class 1.5/300, 10K/20K
Strength testing pressure: PT1.5PN
Low pressure: 0.6Mpa
Seat Testing Pressure(high pressure): 1.1PN
Applicable temperature: -40-180 degree
Competitive Advantage:
Donjoy With advanced technology, excellent quality and perfect after-sales service system, has been assessed for the national high-tech enterprises, the Provincial Famous Trademark, the Trovincial Science and Ttechnology Enterprises, Innovative Enterprises, Patent Model Enterprises, R & D Center, AAA Credit Enterprises.
