| ब्रांड नाम: | DONJOY |
| मॉडल संख्या: | NO.VQD100Q2 |
| न्यूनतम आदेश मात्रा: | Negotiation |
| पैकेजिंग विवरण: | carton box |
| भुगतान की शर्तें: | T/T, LC, Credit Card |

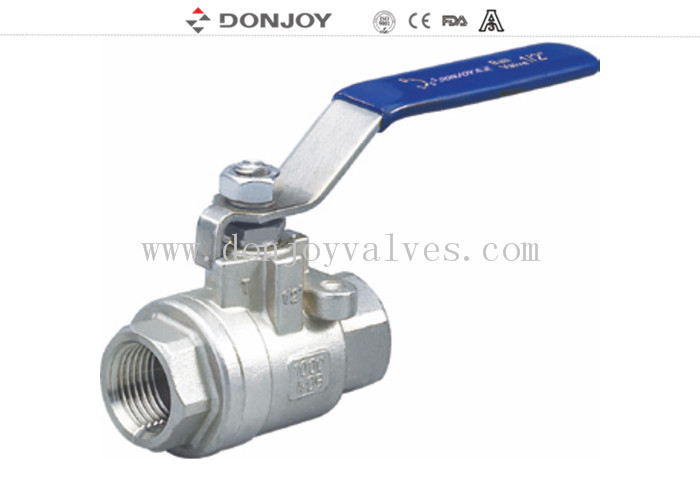

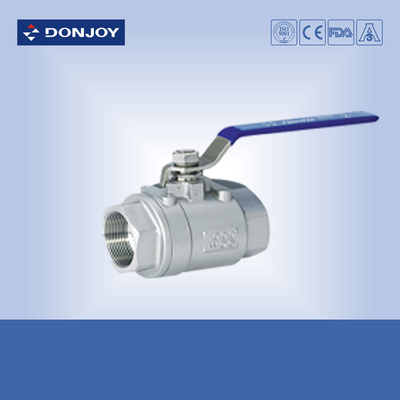

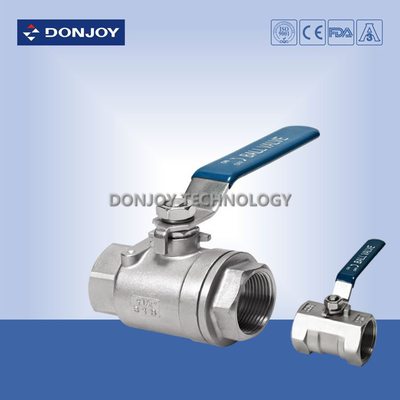

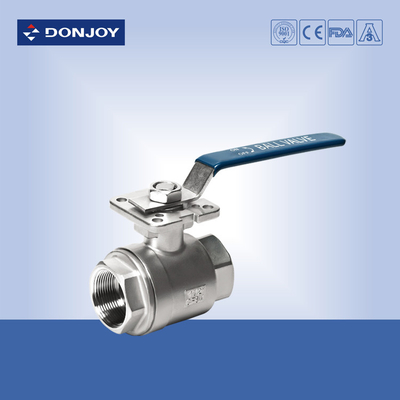

FDA / ISO SS304 Two Peice Ball valve With Female Thread Connection
Detail:
2pcs ball valve
Connection: Clamped, Thread, Welding,SMS,DIN
Standard: DIN,3A,SMS,ISO,IDF, RJT..
Ball type: Straight through
Operation: manual
Specification
| Product Name: | SS304,Two Peices industrial Ball valve With Female Thread Connection |
| Valve Body Material: | SS304 or SS316L |
| Seal Material: | PTFE |
| Max. Working Pressure: | 10Bar |
| Max. Working Temperature: | 120 degree C |
| Availably size: | DN25-DN100 or 1" - 4" |
| Availably connection: | Weld,Clamp,Thread, DIN,SMS |
| Availably standard: | DIN,SMS,3A |
| Ball Type: | Directly |
| Operated: | Manual,Pneumatic,Electric, Actuator |
| Certificate: | FDA,CE,3A,ISO |
| Packaging details | standard export package or customerized |
| Delivery details | usually within 20 days after receiving T/T down payment |
Applications:
The series of ball valve is mainly used in industrial fields of gasoline, chemical, hydraulic, food and beverage, etc.
The structure of the ball valve: One piece, Two pieces, Three piece and Flanged type, etc.
Technical Feature
Pressure: PN1.6-6.4Mpa, Class 1.5/300, 10K/20K
Strength testing pressure: PT1.5PN
Applicable media:
Z41H-(16-64)C Water: Oil, Gas
Z41H-(16-64)C Nitric Acid
Z41H-(16-64)C Acetic Acid
Applicable temperature: -40-180 degree
Competitive Advantage:
Donjoy With advanced technology, excellent quality and perfect after-sales service system, has been assessed for the national high-tech enterprises, the Provincial Famous Trademark, the Trovincial Science and Ttechnology Enterprises, Innovative Enterprises, Patent Model Enterprises, R & D Center, AAA Credit Enterprises.
