| ब्रांड नाम: | DONJOY |
| मॉडल संख्या: | NO.VQD100Q2 |
| न्यूनतम आदेश मात्रा: | Negotiation |
| पैकेजिंग विवरण: | carton box |
| भुगतान की शर्तें: | T/T, LC, Credit Card |

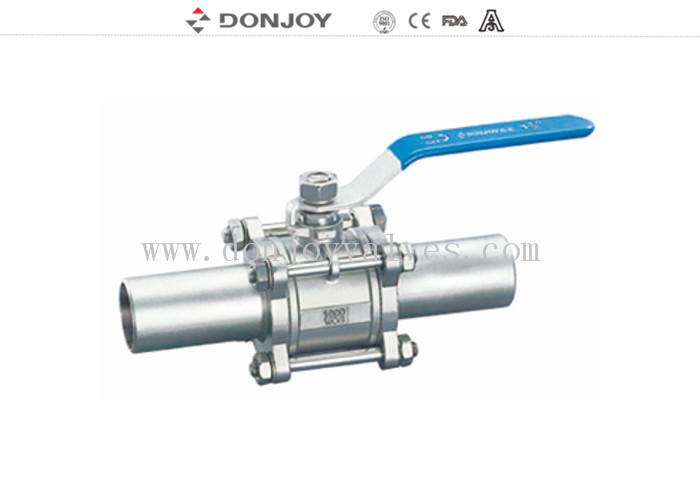

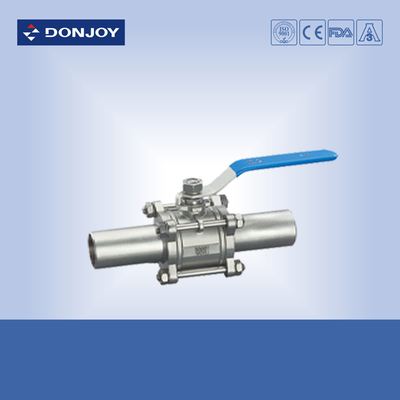

3pcs welded full port Sanitary Ball Valve With connection pipe
Detail:
3pcs welded industrial ball valve
Connection: Clamped, Thread, Welding
Standard: DIN,3A,SMS,ISO,IDF, RJT..
Specification
| Product Name: | Stainless steel 3pcs welded industrial full port Ball valve With connection pipe |
| Valve Body Material: | SS304 or SS316L |
| Seal Material: | PTFE |
| Max. Working Pressure: | 10Bar |
| Max. Working Temperature: | -40 - 180 degree C |
| Availably size: | DN8-DN100 or 1/4" - 4" |
| Availably connection: | Weld,Clamp,Thread, |
| Availably standard: | DIN,SMS,3A |
| Ball Type: | straight through type |
| Operated: | Manual,Pneumatic, |
| Certificate: | FDA,CE,3A, |
Applications:
The ball valve according to 3A and ASME BPE standard design, mainly used in gasoline ,chemical and other industires
Technical specification
Pressure: PN1.6-6.4Mpa,
Strength testing pressure: Low pressure: 0.6Mpa
Seat Testing Pressure(high pressure): 9.6Mpa
Applicable media:
Z41H-(16-64)C Water: Oil, Gas
Z41H-(16-64)C Nitric Acid
Z41H-(16-64)C Acetic Acid
Applicable temperature: -40-180 degree
Competitive Advantage:
Donjoy With advanced technology, excellent quality and perfect after-sales service system, has been assessed for the national high-tech enterprises, the Provincial Famous Trademark, the Trovincial Science and Ttechnology Enterprises, Innovative Enterprises, Patent Model Enterprises, R & D Center, AAA Credit Enterprises.
