| ब्रांड नाम: | DONJOY |
| मॉडल संख्या: | NO.VQD100Q2 |
| न्यूनतम आदेश मात्रा: | Negotiation |
| पैकेजिंग विवरण: | carton box |
| भुगतान की शर्तें: | T/T, LC, Credit Card |

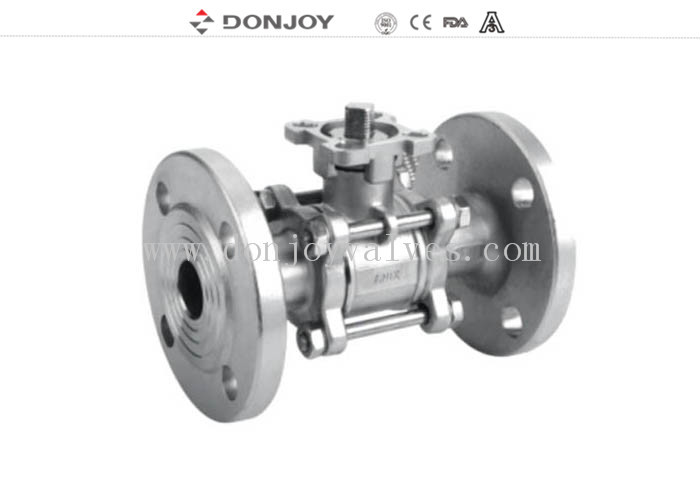

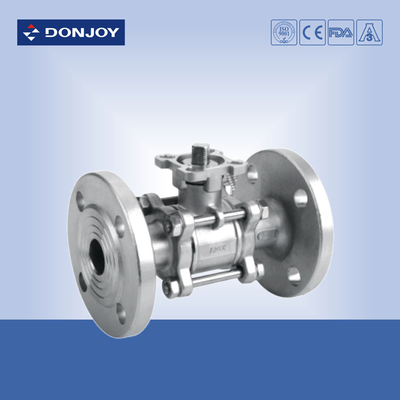

JIS-Flanged Sanitary Ball Valve , 3 PCS Ball valve With flange Connection
Detail:
3pcs flange ball valve
Connection: Clamped, Thread, Welding
Standard: DIN,3A,SMS,ISO,IDF, RJT..
Structure: can be manual and pneumatic
Specification
| Product Name: | JIS-Flanged 3 PCS industrial full port Ball valve With flange Connection |
| Valve Body Material: | SS304 or SS316L |
| Seal Material: | PTFE |
| Max. Working Pressure: | 10Bar |
| Max. Working Temperature: | -40 - 180 degree C |
| Availably size: | DN15-DN100 or 1" - 4" |
| Availably connection: | Weld,Clamp,Thread, Flange |
| Availably standard: | DIN,SMS,3A |
| Ball Type: | straight through |
| Operated: | Manual,Pneumatic, |
| Certificate: | FDA,CE,3A, |
| Packaging details | standard export package |
Applications:
The 3pcs flange ball valve according to 3A and ASME BPE standard design, mainly used in oil, gasoline,water chemical and other industires
Technical Feature
Size: 1"-4", DN15-DN100
Material: 1.4301/304, 316L/1.4404
Gasket: PTFE/TFM(FDA 177.1550)
Temperature: -40º C to 180º C(Standard)
Pressure: 10 bar
Certificate: CE, 3A, FDA
Operation: manual or penumatic actuator
Competitive Advantage:
Donjoy With advanced technology, excellent quality and perfect after-sales service system, has been assessed for the national high-tech enterprises, the Provincial Famous Trademark, the Trovincial Science and Ttechnology Enterprises, Innovative Enterprises, Patent Model Enterprises, R & D Center, AAA Credit Enterprises.
“DONJOY is the only company that pass nine series of products by American 3A certification organization in Asian sanitary pumps and valves field.”
