| ब्रांड नाम: | DONJOY |
| न्यूनतम आदेश मात्रा: | Negotiation |
| पैकेजिंग विवरण: | carton box |
| भुगतान की शर्तें: | T/T, LC, Credit Card |

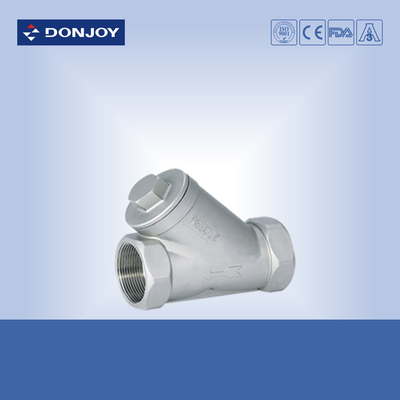

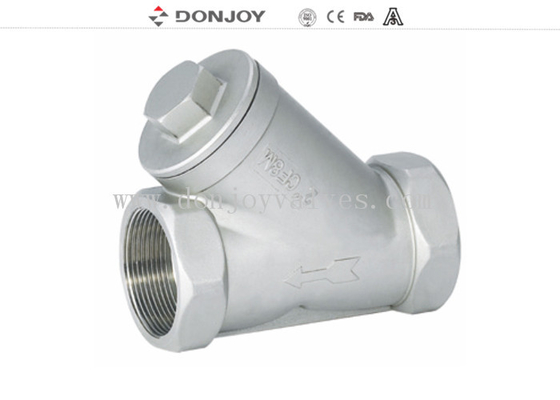

SS304 / SS316L Y type Fileter Sanitary Ball Valve , Angle Filter BSP Thread connection
Detail:
Monimal Pressure: PN1.6,2.5,5.4,6.4MPa
Strength Testing Pressure: PT2.4, PT3.8,PT6.0, PT9.6MPa
Application Media:
SY11-(16-64) C Water, Oil, Gas
SY11-(16-64) P Nitric Acid
SY11-(16-64) R Acetic acid
Temperature: -40degree to 180 Degree
Materials: CF8, CF8M
Specification
| Product Name: | SS304 /SS316L , Y type Fileter, Angle Filter BSP Thread connection |
| Valve Body Material: | SS304 or SS316 |
| Seal Material: | PTFE |
| Max. Working Pressure: | 3000PSI,2.1MPa |
| Max. Working Temperature: | 180 degree C |
| Availably size: | DN8-DN50 |
| Availably connection: | Weld,Clamp,Thread, Flange |
| Availably standard: | DIN,SMS,3A |
| Type: | Y type |
| Operated: | Manual |
| Certificate: | FDA,CE,3A,ISO |
If you need more information,Please do not hesitate to contact us.
