| ब्रांड नाम: | DONJOY |
| मॉडल संख्या: | NO.VJZ140S1 |
| न्यूनतम आदेश मात्रा: | Negotiation |
| कीमत: | बातचीत योग्य |
| पैकेजिंग विवरण: | carton box |
| भुगतान की शर्तें: | T/T, LC, Credit Card |

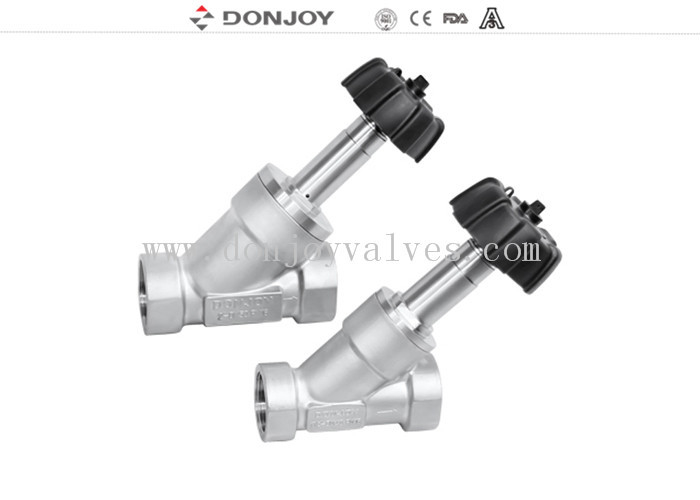

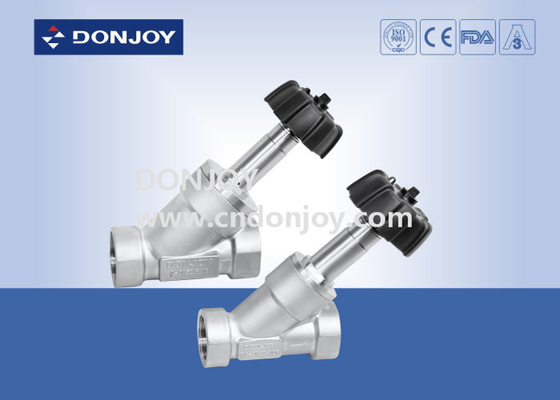

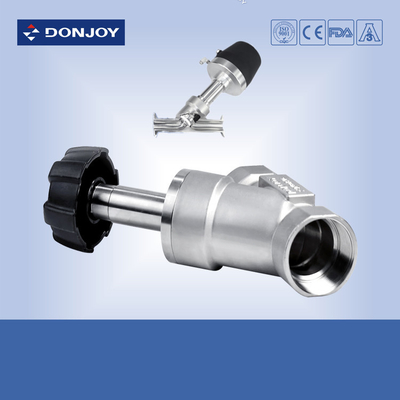

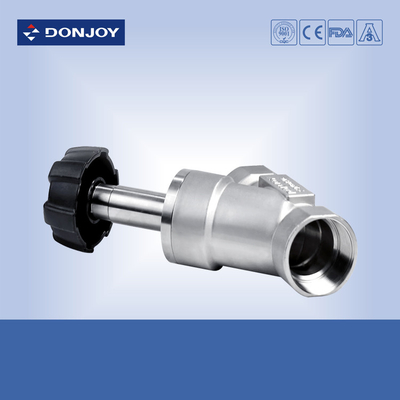

Plastic Manual angle seat valves with BSP Thread end
Detail:
A new generation of high purity design of the angle seat valve
1. No dead angle, no retention to meet the requirements of all kinds of health.
2. The valve have no dead angle, no need to consider the resulting corner because of the complex structure.
3. Temperature: maximum temperature up to 200 (depending on the seal type)
4. Seal: elastic shaft seal design, embedded spool design.
specifications:
| Product Name: | Plastic Handle Angle Seat Valve, Adjust Valve with thread Connection, general switch,SS316L |
| Valve Body Material: | SS304/SS316L |
| Seal Material: | EPDM |
| Working Pressure: | 8 Bar, 10Bar(option). |
| Max. Working Temperature: | 120 degree ,180Degree(Option) |
| Availably size: | 1/2"-3", DN10-DN80 |
| Availably connection: | Thread,Weld,Clamp,BSP/BSP/NPT |
| Operate: | Pneumatic ,Manual, Control Head |
| Certificate: | FDA,CE,ISO |
Operation Options for Seat Valve
1. Manual:Plastic handwheel, Stainless steel Wheel,Fine-turning hand wheel
2. Pnuematice:Plastic and stainless steel actuators
3. Control Head: Valve Positioner, Process controller, C-Top, Mini C-Top,Position Sensor
Applications:
Angle seat valve is a general switch in the automactic control system is widely used in printing, dyeing,bleaching, food,washing, chemical, water treatment,pharmacy and other automated machinery and equipment. It is featured with water hammer protection. Noise-free, reliable sealing performance.
Certificate
Donjoy manufacture products certified by 3A,CE,FDA and so on, according to GMP, EHEDG standard. Production strictly enforce ISO9001-2008 management system.
Tag : Angle seat valve, Stem valve, Sanitary valves
