| ब्रांड नाम: | DONJOY |
| मॉडल संख्या: | NO.VKD210S1 |
| न्यूनतम आदेश मात्रा: | Negotiation |
| कीमत: | बातचीत योग्य |
| पैकेजिंग विवरण: | Carton, Wooden Case |
| भुगतान की शर्तें: | T/T,L/C, Credit Card |

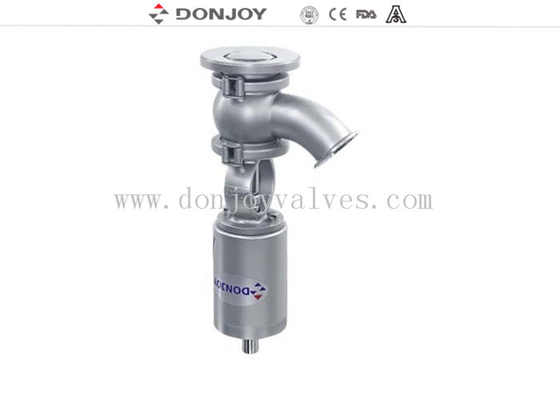

Air / Spring Tank Bottom Valve SS316L Medium Pressure 45 Elbow Type
Operation principle
1. Operated by Air/Spring, Air / Air
2. Compressed air push shaft to open and close valve
3. Valve structure: Valve seat opens construction inside so that it can avoid pushing when pipeline is over pressure
4. Parts in contact with the products: AISI 316L,AISI 304
5. Other parts: AISI 304
6. Gaskets (standard): EPDM according to FDA 177.2600
7. Internal surface finish: Ra≤0.8μm
8. External surface finish: Mirror polish
Description
|
Product Name: |
SS304 stainless steel sanitary pneumatic tank bottom seat valve 45 elbow type for Food and beverage industrial |
|
Valve Body Material: |
SS316L |
|
Seal Material: |
NBR or FPM |
|
Working Pressure: |
10 Bar / 145PSI |
|
Max.Working Temperature: |
-10℃to +120℃(EPDM)14°F 248° F+140(SPI, max. 30min)248°F |
|
Availabl size: |
1"-4" DN25-DN100 |
|
Available connection: |
DIN, Clamp, SMS, RJT, IDF...Flange |
|
Operated: |
Air/Spring, Air / Air |
|
Available structure: |
Flange type, 90℃ elbow type |
|
Certificate: |
3A/54-02 (1580), PED/97/23/EC, FDA.177.2600 |
|
Application scope: |
Dairy,food processing, beverage, pharmacy, cosmetic, etc |
|
Feature: |
Dead angle better, better circulation ability. |
|
Design: |
Dead conner minimized design |
Design and features
1. 3A sanitary design
2. Complete discharge system avoids retention
3. Normally closed valve (closed by spring) -standard version
4. Normally open valve (opened by spring) by a 180 degree rotating of the pneumatic actuator
5. The valve seat opens into the tank to avoid accidental openings.
6. 360℃adjustable body, even after welding the flange to the tank
7. Open lantern for visual inspection of the shaft sealing
8. Easy disassembly by loosening the clamp
9. Connections: clamp
Certificate
Donjoy manufacture products certified by 3A,CE,FDA and so on, according to GMP, EHEDG standard. Production strictly enforce ISO9001-2008 management system.
Application scope:
Dairy, food, beverage,cosmetics, chemical,.etc.
Packging details:
Bubble pack for each valve, outside packing are carton or plywood cases. Or as per the request of customer.
Delivery time:
Usually within 20days after T/T down payments.
Product display
Tag : Tank bottom valve, Seat valve. Donjoy stainless steel valve
