| ब्रांड नाम: | DONJOY |
| मॉडल संख्या: | NO.VHX100S1-020 |
| न्यूनतम आदेश मात्रा: | Negotiation |
| कीमत: | US $130 - 670 / Piece |
| पैकेजिंग विवरण: | carton box |
| भुगतान की शर्तें: | T/T, LC, Credit Card |
Clamped Connection Regulating Valve for DN25-DN100 , single seated valve
Specifications
|
Product Name: |
Pneumatic Regulating Valve with Control Head |
|
Valve Body Material: |
AISI304, AISI316L |
|
Seal Material: |
EPDM |
|
Working Pressure: |
10Bar |
|
Max. Working Temperature: |
120 degree C |
|
Available size: |
DN25-DN100 or 1" - 4" |
|
Available connection: |
CLAMP, DIN, SMS |
|
Air Operation: |
can be configured to intelligent/C-TOP controller |
|
Operate: |
Pneumatic |
|
Certificate: |
FDA,CE |
|
Packing |
Bubble pack for each valve. Outside packing is carton or plywood cases. Or as per the request of customers. |
|
Optional |
Position sensor |
Description
Options for Regulating Valve
Heat Jacket type regulating valve
Diaphragm-Aseptic Regulating valve
Non-Retention Regulating Valve
Aseptic Regulating valve
Deadline regulating valve
Manual Regulating valve
High pressure actuator regulating valve
Body Combination Type: 20, 30, 11, 12, 21A, 22A
Applications
Regulating valve is a pneumatic Proportional valve, which is equipment to control the flow.It's widely used to the dairy, food, beverage, pharmacy, and chemical industry.
The most important application is in pressure control, flow control, level ect.
Operating Principles
The position of valve tapered plug is adjusted by position.So as to control flow rate through the valve(PD).Besides, the intelligent process controller can control position and flow rate (PID).
Competitive Advantage
“DONJOY is the only company that passes nine series of products by American 3A certification organization in Asian sanitary pumps and valves field.”

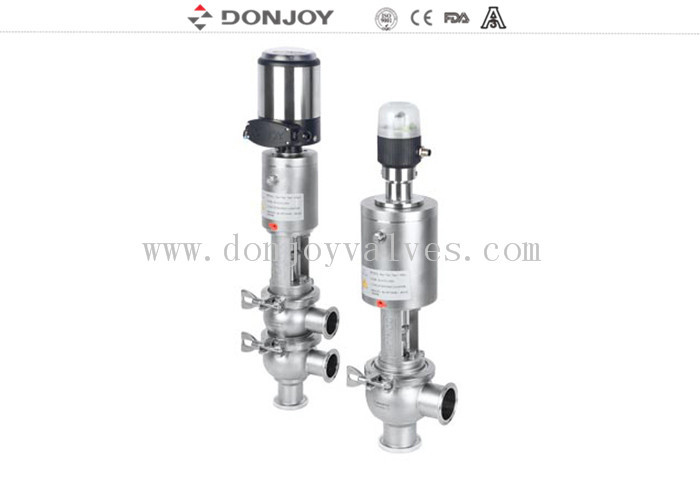

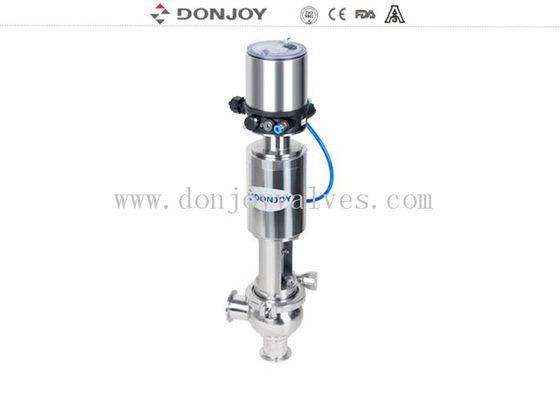

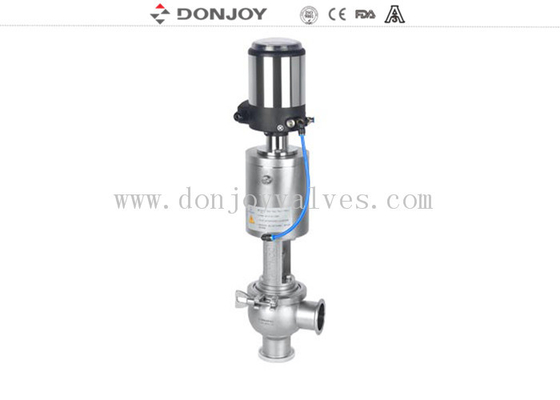

Product display
Tag: Donjoy regulating valve, Sanitary valve, Donjoy control valves
