| ब्रांड नाम: | DONJOY |
| मॉडल संख्या: | NO.VKD310Q1 |
| न्यूनतम आदेश मात्रा: | Negotiation |
| कीमत: | negotation |
| पैकेजिंग विवरण: | Carton, Wooden Case |
| भुगतान की शर्तें: | T/T,L/C, Credit Card |

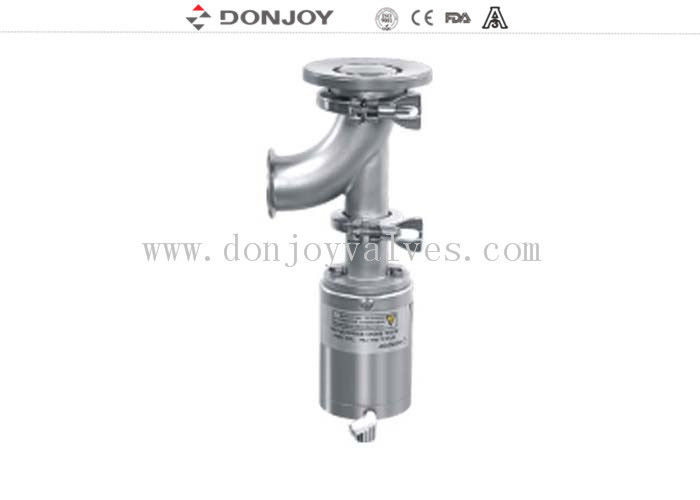

Professional sanitary Flush Tank Bottom Valve with CE/FDA Certification
Technical specifications
1. Size: DN25-DN100 1”-4”
2. Working temperature: -10℃to +120℃ (EPDM)14°F 248° F+140(SPI, max. 30min) 248°F
3. Max. Working pressure: 10bar / 145PSI
4. Compressed air pressure: 6-8bar / 87-116PSI
5. Air supply connections: G1/8” (BSP)
Description
|
Product Name: |
2" 90°elbow Stainess steel manual tank bottom seat valve for beverage and pharmaceutical industries |
|
Valve Body Material: |
SS316L |
|
Seal Material: |
NBR or FPM |
|
Working Pressure: |
10 Bar / 145PSI |
|
Max.Working Temperature: |
-10℃to +120℃(EPDM)14°F 248° F+140(SPI, max. 30min) 248°F |
|
Available size: |
1"-4" DN25-DN100 |
|
Available connection: |
DIN, Clamp, SMS, RJT, IDF...Flange |
|
Operated: |
Air/Spring, Air / Air |
|
Available structure: |
Flange type, 90℃ elbow type |
Application scope:
Dairy, food, beverage,cosmetics, chemical,.etc.
Packging details:
Bubble pack for each valve, outside packing are carton or plywood cases. Or as per the request of customer.
Delivery time:
Usually within 20days after T/T down payments.
Design and features
1. 3A sanitary design
2. Complete discharge system avoids retention
3. Normally closed valve (closed by spring) -standard version
4. Normally open valve (opened by spring) by a 180 degree rotating of the pneumatic actuator
5. The valve seat opens into the tank to avoid accidental openings.
6. 360℃adjustable body, even after welding the flange to the tank
7. Open lantern for visual inspection of the shaft sealing
8. Easy disassembly by loosening the clamp
9. Connections: clamp/weld
Options
Manual
Steam sterilized(if shaft sterilisation is required).
C-top control unit
Internal surface finish: Ra ≤0.5μm
Gaskets: NBR or FPM
Connections: DIN, Clamp, SMS, RJT, IDF...Flange
Double and single acting actuator
Air / Spring, Air / Air
Target of competition
Donjoy ‘s vision is to be become leading supplier in fluid control, high purity sanitary valve &pump fields, with advanced technology and excellent quality.
Technical data

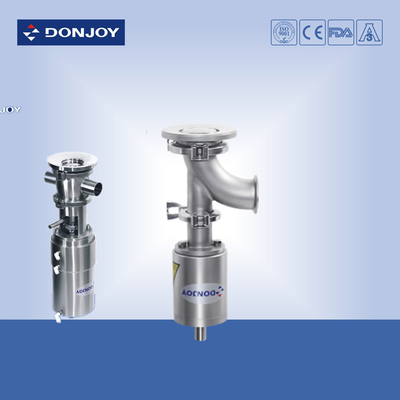

Product display
Tag : Donjoy Sanitary valve, Stainless steel valve, Tank bottom valve
