| ब्रांड नाम: | DONJOY |
| मॉडल संख्या: | NO.VKD210S1 |
| न्यूनतम आदेश मात्रा: | Negotiation |
| कीमत: | बातचीत योग्य |
| पैकेजिंग विवरण: | Carton, Wooden Case |
| भुगतान की शर्तें: | T/T,L/C, Credit Card |

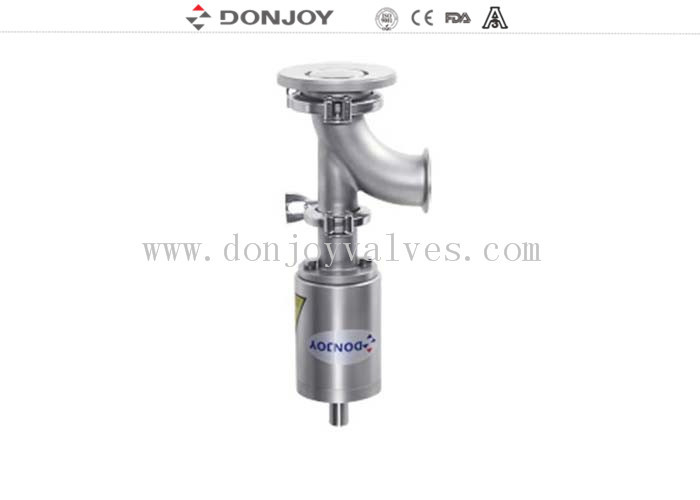

Clamp Connection Sanitary Tank Bottom Valve 3 Inch Size SS316L Material
Description
|
Product Name: |
stainless steel sanitary pneumatic tank bottom seat valve of SS316L 3 Inch with clamp connection |
|
Valve Body Material: |
SS316L |
|
Seal Material: |
NBR or FPM |
|
Working Pressure: |
10 Bar / 145PSI |
|
Max.Working Temperature: |
-10℃to +120℃(EPDM)14°F 248° F+140(SPI, max. 30min) 248°F |
|
Available size: |
1"-4" DN25-DN100 |
|
Available connection: |
Clamp |
|
Operated: |
Air/Spring, Air / Air |
|
Available structure: |
Flange type, 90℃ elbow type |
|
Certificate: |
3A/54-02 (1580), PED/97/23/EC, FDA.177.2600 |
|
Application scope: |
Dairy,food processing, beverage, pharmacy, cosmetic, etc |
Design and features
1. 3A sanitary design
2.Complete discharge system avoids retention
3. Normally closed valve (closed by spring) -standard version
4. Normally open valve (opened by spring) by a 180 degree rotating of the pneumatic actuator
5. The valve seat opens into the tank to avoid accidental openings.
6. 360℃adjustable body, even after welding the flange to the tank
7. Open lantern for visual inspection of the shaft sealing
8. Easy disassembly by loosening the clamp
9. Connections: clamp
Technical specifications
1. Size: DN25-DN100 1”-4”
2. Working temperature: -10℃to +120℃ (EPDM)14°F 248° F+140(SPI, max. 30min) 248°F
3. Max. Working pressure: 10bar / 145PSI
4. Compressed air pressure: 6-8bar / 87-116PSI
5. Air supply connections: G1/8” (BSP)
Parts contact with the product: AISI 316L, AISI304
Other parts: AISI 304
Gaskets( standard): EPDM according to FDA 177.2600
Internal surface finish: Ra≤0.8μm
External surface finish :Mirror finish
Application scope:
The tank bottom seat valve is a pneumatically operated single seat valve, assembled at the bottom of tank, used in diary,food processing, beverage,pharmaceutical and fine chemical industries.
Packging details:
Bubble pack for each valve, outside packing are carton or plywood cases. Or as per the request of customer.
Delivery time: Usually within 20days after T/T down payments.
Technical data
Tag: DONJOY valve, Tank bottom valve. Tank valve
