| ब्रांड नाम: | DONJOY |
| मॉडल संख्या: | NO.VHX103Q1-021 |
| न्यूनतम आदेश मात्रा: | Negotiation |
| कीमत: | US $400 - 1,200 / Piece |
| पैकेजिंग विवरण: | carton box |
| भुगतान की शर्तें: | T/T, LC, Credit Card |

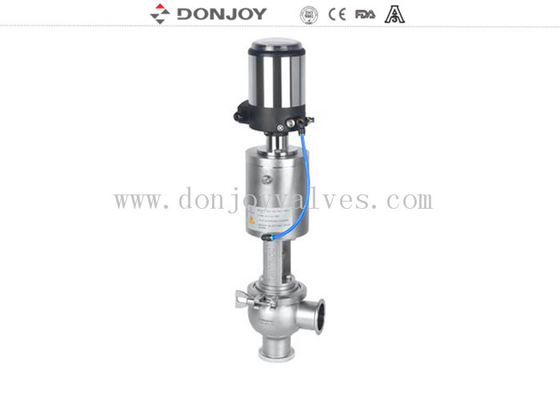

1'' - 6'' 316L 304 single seat pneumatic reversing seat valve with C-TOP
Quick detail
single seat pneumatic reversing seat valve
reversing valve multi-directional with pneumatic actuator
regulating divert seat valve with single seat
Specification
|
Product Name: |
1'' - 6'' 316L 304 single seat pneumatic reversing seat valve with C-TOP |
|
Valve Body Material: |
SS304 / 316L |
|
Seal Material: |
EPDM (standard) FPM/SILICON/NBR, FDA177.2600 |
|
Max Working Pressure: |
10 bar |
|
Max.Working Temperature: |
120°C |
|
Available size: |
DN25 - DN150 or 1" - 6" |
|
Available connection: |
Clamp/welding/thread/special connection |
|
Available standard: |
3A/DIN/SMS/RJT/ISO/IDF |
|
Operated: |
Pneumatic |
|
Structure |
With C - TOP |
|
Certificate: |
3A/54-02 (1580), PED/97/23/EC, FDA.177.2600, ISO |
|
Application scope: |
Dairy, food, beverage, pharmacy, cosmetic etc |
|
Combination of valve body: |
Flexible |
|
Sealing shaft: |
Waveform |
|
Seat: |
Single seat |
Feature
The material connected with others: AISI 316L / 1.4404
The material in other part: AISI 304
Seal ring: EPDM FDA 177.2600
Inernal surface finish: Ra ≤ 0.8μm
External surface finish: CNC fine machining
Optional
Gasket: NBR / MVQ / FPM
Pneumatic actuator of double acting
Inductive position sensor
C - TOP control head
Position sensor
Product display
Product body type
Tag : Seat Valve, Aspetic shut off valve, Sanitary valves
