| ब्रांड नाम: | DONJOY |
| मॉडल संख्या: | NO.VTJ111Q1 |
| न्यूनतम आदेश मात्रा: | Negotiation |
| पैकेजिंग विवरण: | carton box |
| भुगतान की शर्तें: | T/T, LC, Credit Card |

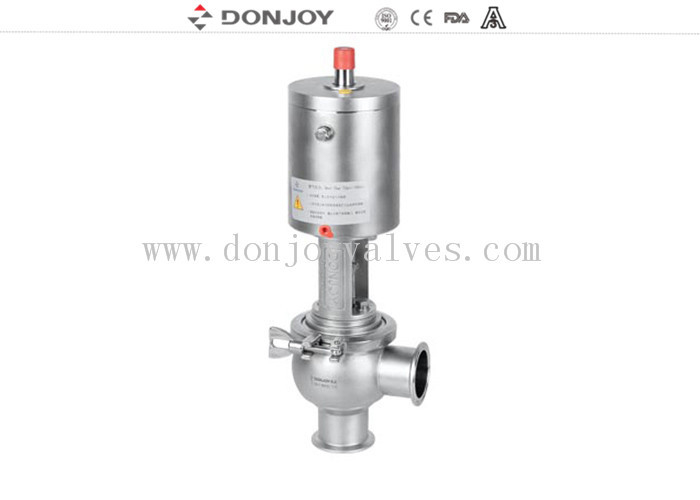

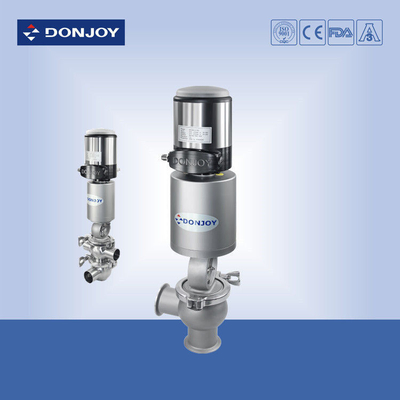

DN25-DN100 pressure regulating valve EPDM Gasket with positioner
Description
Options for Regulating Valve
Heat Jacket type regulating valve
Diaphragm-Aseptic Regulating valve
Non-Retention Regulating Valve
Aseptic Regulating valve
Deadline regulating valve
Manual Regulating valve
High pressure actuator regulating valve
Body Combination Type: 20,30,11,12,21A,22A
Specifications
|
Product Name: |
Pneumatic Regulating Valve with Control Head |
|
Valve Body Material: |
AISI304, AISI316L |
|
Seal Material: |
EPDM |
|
Working Pressure: |
10Bar |
|
Max. Working Temperature |
120 degree C |
|
Available size: |
DN25-DN100 or 1" - 4" |
|
Available connection: |
CLAMP, DIN, SMS |
|
Air Operation: |
can be configured to intelligent/C-TOP controller |
|
Operate: |
Pneumatic |
|
Certificate: |
FDA,CE |
|
Body Combination Type |
20,30,11,12,21A,22A |
|
Compressed air pressure |
6 - 8 bar / 87 - 116 PSI |
Operating Principles
The position of valve tapered plug is adjusted by position.So as to control flow rate through the valve(PD).Besides, the intelligent process controller can control position and flow rate(PID)
Design and function
Designed according to 3A sanitary standard.
Normally closed valve (standard version)
Adjusting shaft of equal percent
360 degree adjustable valve body
With compact design
Double function positioning
PD: position controller
PID: process controller
Assembly/disassembly just to loosen the clamp
Standard connection: welding, clamping, threading
Technical features
Material in connecting part: AISI 316L / 1.4404
Material in other parts: AISI304 / 1.4301
Material of seal ring: EPDM / FDA 177.2600
Internal surface finish: Ra≤0.6μm
Jacketed heat valve body ( optional )
Shaft sterilization / cleaning ( optional )
Actuator with higher pressure ( optional )
Gasket: NBR / FPM ( optional )
Connection standard: DIN / SMS / RJT / IDF / ISO
Product data
Tag: Single seat vlave, Change over valves, Regulating valve
