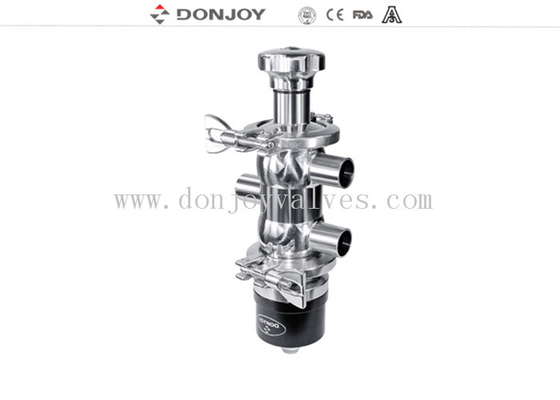

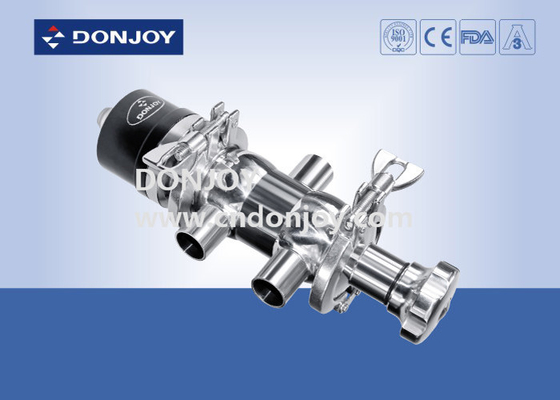

SS316 Multiport Radial Diaphragm Valve with manual/pneumatic interchangeable
Specifications
|
Product Name: |
SS316 Multiport Radial Diaphragm Valve with |
|
Valve Body Material: |
SS316L |
|
Seal Material: |
Single sillcone gasket/ Adhesive PTFE+EPDM/Two pieces |
|
MaxWorking Pressure: |
6 Bar |
|
Max.WorkingTemperature: |
120 degree C |
|
Availably size: |
3/4''-2.5'', DN20-DN65 |
|
Availably connection: |
Clamp/weld/thread/special connection |
|
Availably standard: |
3A/BPE/DIN/ISO/IDF |
|
Operated: |
Manual,Pneumatic |
|
Availably structure: |
Straight, tee, U-type, tank bottom |
|
Control: |
Smart valve positioner / C-TOP control / position sensor |
|
Certificate: |
3A/54-02 (1580), PED/97/23/EC, FDA.177.2600 |
|
Application scope: |
Dairy,food, beverage, pharmacy, cosmetic, etc |
|
Plastic actuator: |
With indicator light |
|
Size of clamp: |
According to your valve |
Description
Various configuration of Diaphragm valve
1.Didaphragm valve with Pisitioner/Process Controller(IL-TOP)
2.Diaphragm valve with Control Unit(C-Top)
3.Valve position Regulator
4.Position Sensor Module
5.Plastic Handle
6.Stainless steel handle
7.Stianless steel acutor
8.Electric Diaphragm valve
9.Plastic Acutor
10.Body: Casting / Forging
Packaging Details
Bubble pack for each valve.
Outside packing are carton or plywood cases.
Or as per the request of customers.
Delivery details
Usually within 20 days after receiving T/T down payment.
Drawing
Please check the size form below for detailed information.
