Stainless steel Manual Tank Bottom Radial Sanitary Diaphragm Valve
Specification
|
Product Name: |
Stainless steel Manual Tank Bottom Radial Sanitary Diaphragm Valve |
|
Valve Body Material: |
SS316L |
|
Seal Material: |
Single sillcone gasket/ Adhesive PTFE+EPDM/ Two pieces PTFE+EPDM |
|
MaxWorking Pressure: |
6 Bar |
|
Max.WorkingTemperature: |
150 degree °C |
|
Availably size: |
1/2''-3" |
|
Availably connection: |
Clamp/weld/thread/special connection |
|
Availably standard: |
3A/BPE/DIN/ISO/IDF |
|
Operated: |
Manual,Pneumatic |
|
Control: |
Smart valve positioner / C-TOP control / position sensor |
|
Application scope: |
Dairy,food, beverage, pharmacy, cosmetic, etc |
|
Size of clamp: |
According to your valve |
Description
Various configuration of Diaphragm valve
1. Didaphragm valve with Pisitioner/Process Controller(IL-TOP)
2. Diaphragm valve with Control Unit(C-Top)
3. Valve position Regulator
4. Position Sensor Module
5. Plastic Handle
6. Stainless steel handle
7. Stianless steel acutor
8. Electric Diaphragm valve
9. Plastic Acutor
10. Body: Casting / Forging
Packaging Details
Bubble pack for each valve.
Outside packing are carton or plywood cases.
Or as per the request of customers.
Delivery details
Usually within 20 days after receiving T/T down payment.

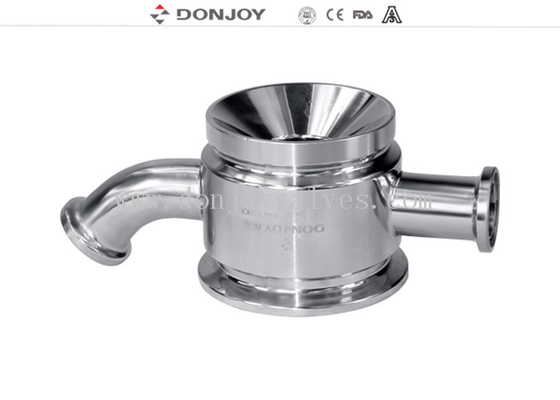

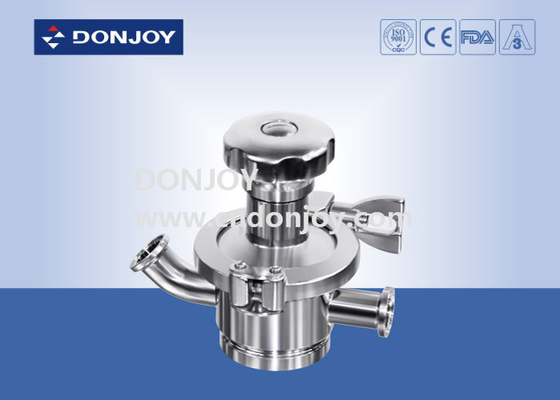

Photos of Manual Tank Bottom Radial Sanitary Diaphragm Valve
Tag : Tank bottom diaphragm valve, Radial valve, Donjoy diaphragm valve
