| ब्रांड नाम: | DONJOY |
| न्यूनतम आदेश मात्रा: | Negotiation |
| कीमत: | US $600 - 1,000 / Piece |
| पैकेजिंग विवरण: | carton box |
| भुगतान की शर्तें: | T/T, LC, Credit Card |

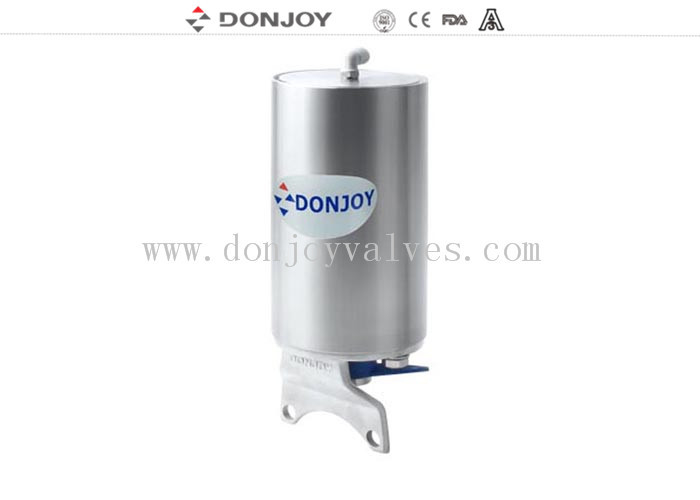

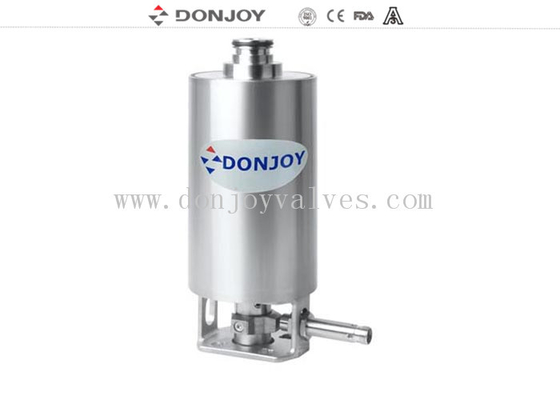

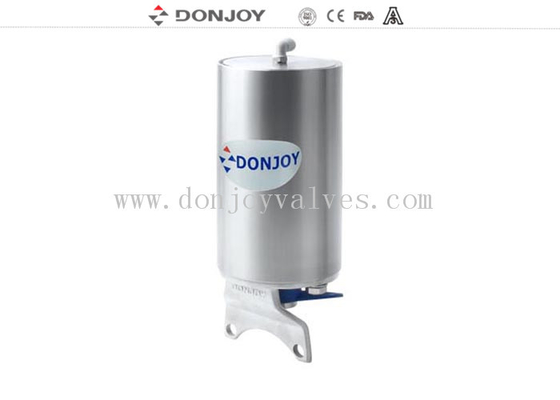

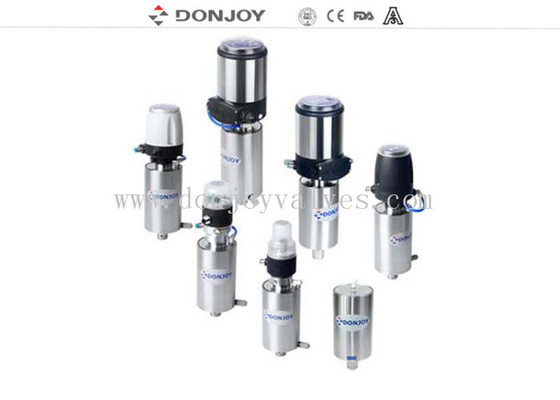

pneumatic actuators with Intelligent Valve Positioner double action, single action
SPECIFICATION
|
Product Name |
pneumatic actuators with Intelligent Valve Positioner double action single action |
|
Power |
air/air , air/spring |
|
Work Pressure |
10 bar |
|
Pneumatic pressure |
5-7 bar |
|
Size |
85-168 |
|
Material |
SS304 / 316 |
|
Working temperature |
-10℃ ~ 80℃ |
|
Standard function |
0/4-20mA to 0-5/10V signal input |
|
Optional function |
0/4-20mA, 0-5/10V position feedback output |
|
Certification |
3A, CE, FDA, ISO |
Application
Stainless steel pneumatic actuators, which is a vertical angle design,it can be mounted to a variety of angular travel valve.All stainless steel shells,the appearance of dead is better,corrosion-resistant, exquisite appearance,actuator and valve connection very simple technical characteristics.And the configuration of various controllers are flexible,such as valve locator(IL-TOP),a valve control unit(C-TOP),a position sensor and other control systems.
Technical specifications
