| ब्रांड नाम: | Donjoy |
| न्यूनतम आदेश मात्रा: | Negotiation |
| कीमत: | बातचीत योग्य |
| पैकेजिंग विवरण: | carton box |
| भुगतान की शर्तें: | T/T, LC, Credit Card |
Pneumatic sanitary diaphragm valve Stainless steel 316 forged body double acting
Tag

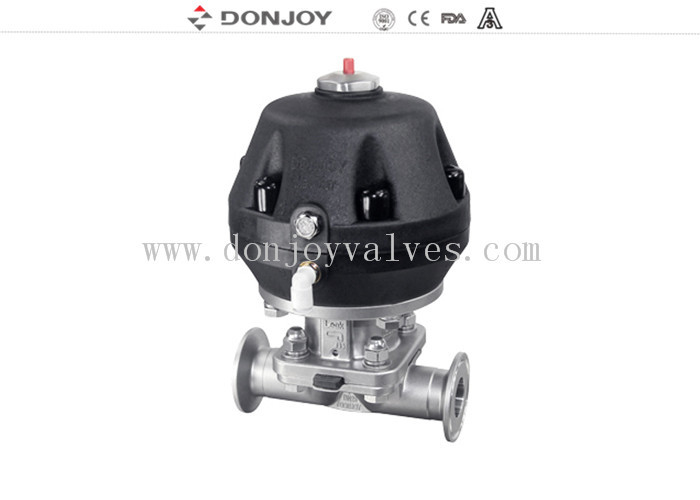

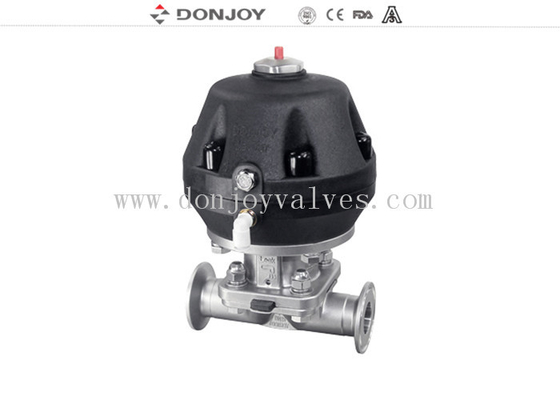

Sanitary Diaphragm Valve with Plastic pneumatic actuator
Multi-function pneumatic diaphragm valve
Double location cylinder pneumatic diaphragm valve
Specifications
|
Product Name: |
Pneumatic sanitary diaphragm valve Stainless steel 316 forged body double acting |
|
Valve Body Material: |
SS316L |
|
Seal Material: |
Single sillcone gasket |
|
MaxWorking Pressure: |
8 Bar |
|
Max.Working Temperature: |
150 degree C |
|
Availably size: |
1''-4'', DN20-DN100 |
|
Availably connection: |
Clamp/weld/thread/special connection |
|
Availably standard: |
3A/BPE/DIN/ISO/IDF |
|
|
Manual,Pneumatic |
|
Availably structure: |
Straight, tee, U-type, tank bottom |
|
|
Smart valve positioner / C-TOP control / position sensor |
|
Certificate: |
3A/54-02 (1580), PED/97/23/EC, FDA.177.2600 |
|
Application scope: |
Dairy,food, beverage, pharmacy, cosmetic, etc |
|
Valve body: |
Forging or casting |
|
Configuration: |
Flexible with various valve seat |
Various configuration of Diaphragm valve

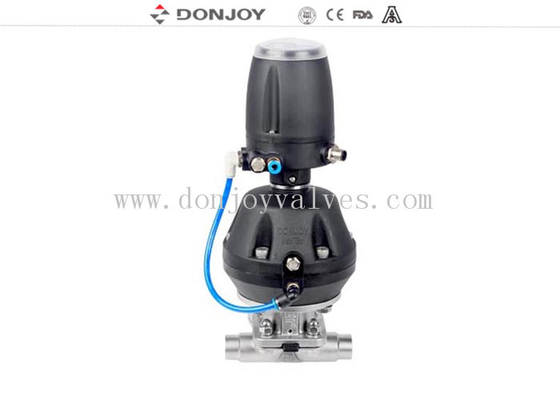

1. Didaphragm valve with Pisitioner/Process Controller (IL-TOP)

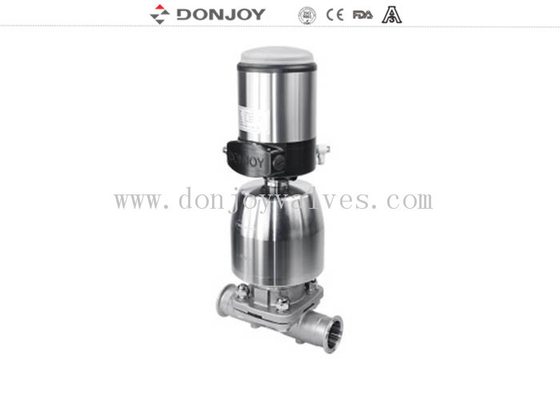

2. Diaphragm valve with Control Unit (C-Top)
3. Valve position Regulator
4. Position Sensor Module
5. Plastic Handle
6. Stainless steel handle
7. Stianless steel acutor
8. Electric Diaphragm valve
Product drawings
Tag: Forged diaphragm valve, Sanitary valve, Donjoy diaphragm valve.
