| ब्रांड नाम: | Donjoy |
| मॉडल संख्या: | NO.MINI - VGM0Q4 |
| न्यूनतम आदेश मात्रा: | Negotiation |
| कीमत: | बातचीत योग्य |
| पैकेजिंग विवरण: | Carton box/Wooden box |
| भुगतान की शर्तें: | T/T, LC, Credit Card |

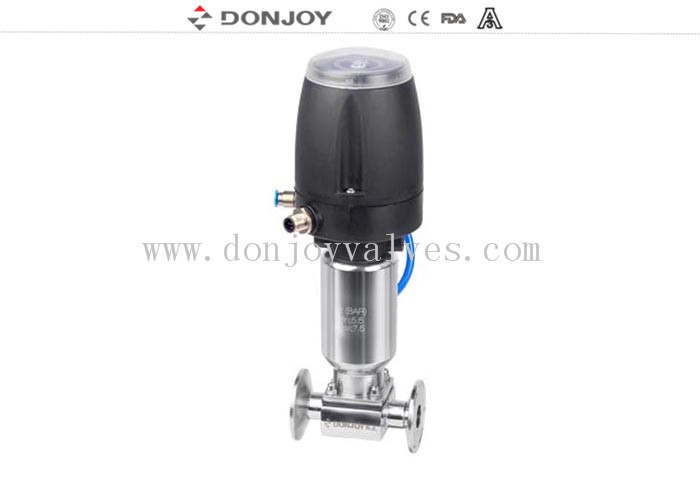

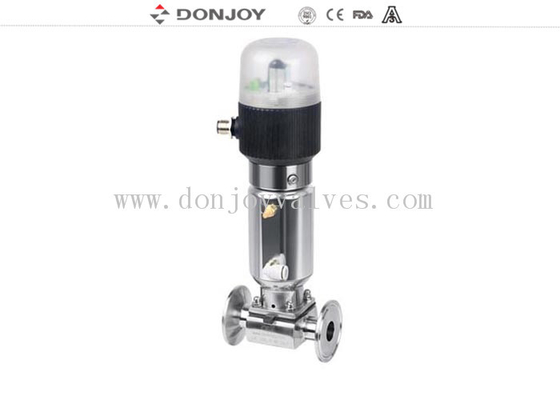

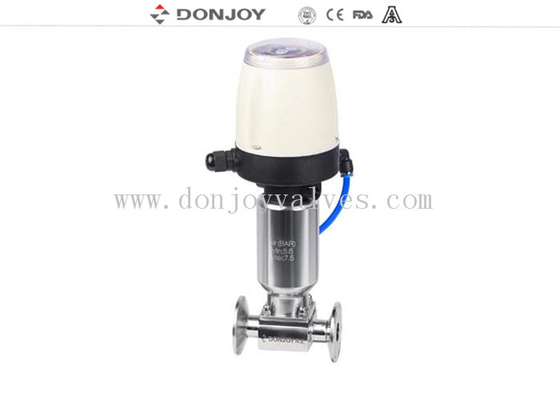

Aseptic 1/2 inch EPDM+PTFE diaphragm Clamp ends pneumatic diaphragm valve with a fluid control smart head
Specifications
Product Name: | Hygenic aseptic 1/2 inch Clamp ends EPDM+PTFE diaphragm pneumatic diaphragm valve with a smart head fluid control |
Valve Body Material: | SS316L |

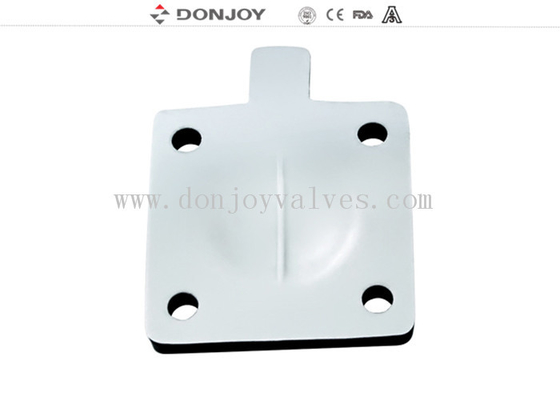

| Single silicone gasket/ Adhesive PTFE+EPDM/single membrane EPDM |
MaxWorking Pressure: | 8Bar |
Max.working temperature: | 150 degree C for adhensive EPDM+PTFE diaphragm,120 degree for single diaphragm EPDM |
Available size: | 1/4”-3/4”, DN6-DN15 |
Available connection: | Clamp/weld/thread/special connection |
Available standard: | 3A/BPE/DIN/ISO/IDF |
Operated: | Pneumatic |
Available structure: | Straight, tee, U-type, tank bottom |
Control: | Smart valve positioner / C-TOP control / position sensor |
Certificate: | 3A/54-02 (1580), PED/97/23/EC, FDA.177.2600 |
Application scope: | Dairy,food, beverage, pharmacy, cosmetic, etc |
Optional: | Manual |
Actuator type: | Pneumatic with air input / output |
Description
Max pressure: Normal close 8 bar,PTFE 6 bar (Option)
Normal close 6 bar,PTFE 4.5 bar(Standard)
Normal open an ddouble acting EPDM 8 bar,PTFE 6 bar
Forging body:1.4404/316L ASME BPE /1.4435 Nb2 Fe ＜0.5%
Casting body:1.4404/316L
Various configuration of Diaphragm valve
1. Diaphragm valve with Positioner/Process Controller(IL-TOP)
2. Diaphragm valve with Control Unit(C-Top
3. Valve position Regulator
4. Position Sensor Module
5. Plastic Handle
6. Stainless steel handle
7. Stainless steel actuator
8. Electric Diaphragm valve
9. Plastic Actuator
10. Body: Casting / Forging
Packaging Details
Bubble pack for each valve. Outside packing is carton or plywood cases.
Or as per the request of customers.
Delivery details
Usually within 20 days after receiving T / T down payment.
Mini - type diaphragm valve
DONJOY was founded in 1993, with registered capital RMB 60.88 million (about 10 million
USD). We focus on developing high precision PID valve positioner, valve control unit, valve
position feedback device, intelligent automatic control valve, proportional valve, process
control valve, high purity pump, homogeneous mixing pump, cleaning technology, pressure
vessel, pipeline safety control technology, high clean pipe fitting& pipeline accessories and
integrating R&D, production and sales as an integrated national high tech enterprise.
