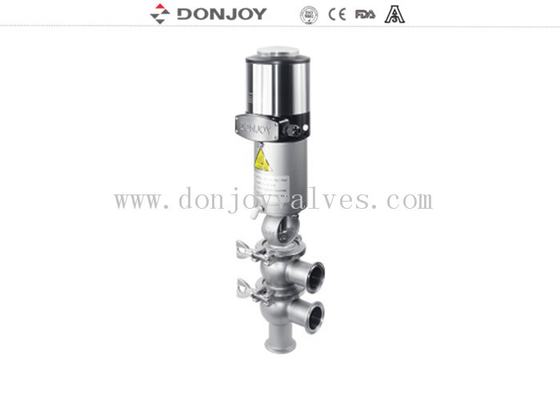

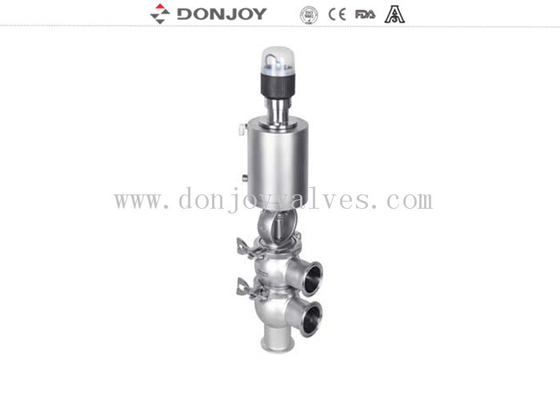

Aseptic sanitary reversing seat valve 3 way(21 type) with pneumatic operation
Tag
Aseptic sanitary reversing seat valve
Aseptic pneumatic reversing seat valve
Aseptic seat valve
Specification
|
Product Name: |
Aseptic sanitary reversing seat valve with pneumatic actuator |
|
Valve Body Material: |
304 / 316L |
|
Seal Material: |
EPDM (standard) FPM/SILICON/NBR, FDA177.2600 |
|
Max Working Pressure: |
10 bar |
|
Max.Working Temperature: |
130°C |
|
Available size: |
DN25 - DN150 or 1" - 6" |
|
Available connection: |
Clamp / welding / thread / special connection |
|
Available standard: |
3A / DIN / SMS / RJT / ISO / IDF |
|
Operated: |
Pneumatic |
|
Design |
The stem can be completely cleaned |
|
Stem wash |
Stem can be sterilized by cleaning fluid or steam |
|
Function |
Have all function of standard divert seat valve |
|
Body seat |
Single seat |
|
Structure |
Aseptic type |
|
Certificate: |
3A/54-02 (1580), PED/97/23/EC, FDA.177.2600, ISO |
Material
The material connected with others: AISI 316L / 1.4404
The material in other part: AISI 304
Seal ring: EPDM FDA 177.2600
Inernal surface finish: Ra ≤ 0.8μm
External surface finish: CNC fine machining
Certificate
3A/54-02 (1580),PED/97/23/EC,FDA.177.2600, ISO
Options
Gasket: NBR / MVQ / FPM
Pneumatic actuator of double acting
Inductive position sensor
C - TOP control head
Position sensor
Product display
Tag: 3 way valve, Single seat valve. Donjoy valve
