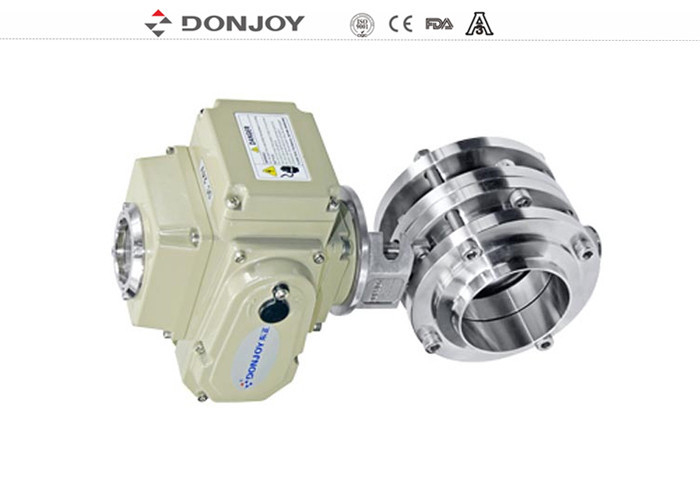

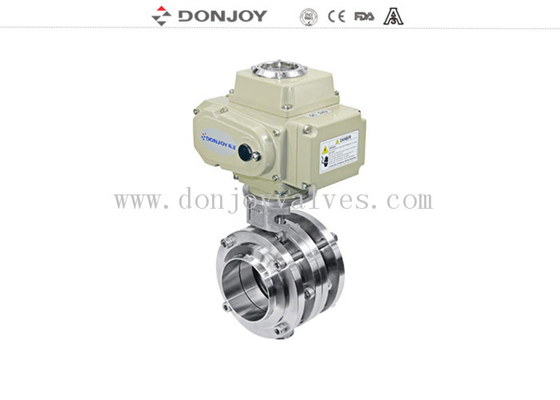

DONJOY Hygenic Stainless Steel 304 316L AC220V Active Output On/off electronic 3PC butterfly valve
Specifications
|
Product Name: |
DONJOY Hygenic Stainless Steel 304 316L AC220V Active Output On/off electronic 3PC butterfly valve |
|
Valve Body Material: |
SS304/316L |
|
Seal Material: |
EPDM (standard) FPM/SILICON/NBR, FDA177.2600 |
|
Max Working Pressure: |
10Bar |
|
Max.Working Temperature: |
120 degree C |
|
Available size: |
DN10-DN300, 1/2"-12" |
|
Available connection: |
Clamp/welding/thread/flange |
|
Available standard: |
3A/DIN/SMS/RJT/ISO/IDF |
|
Operated: |
Electric |
|
Control: |
Electric actuator |
|
Certificate: |
3A/54-02 (1580), PED/97/23/EC, FDA.177.2600, ISO |
|
Application scope: |
Dairy,food, beverage, pharmacy, cosmetic, etc |
|
Packaging Details: |
bubble pack for each valve. Outside packing is carton or |
|
Delivery details: |
Usually within 20 days after receiving T/T down payment. |
Drawing
|
Active output on/off electric actuator
|
Size | Torque | Recommend valve size | |
| Butterfly valve | Ball valve | |||
| DJ-5 | 30S-50N.M | ≤4"-DN100 | ≤2.5" | |
| 20S-30N.M | ≤3"-DN80 | ≤2"-DN50 | ||
| 10S-15N.M | ≤2.5"-DN65 | ≤1.5"-DN40 | ||
| DJ-10 | 30S-100N.M |
5"DN125 12"-DN300 |
DN65-3" | |
| 20S-60N.M |
4"-DN100 6"-DN150 |
2.5"-DN65 | ||
| 15S-50N.M |
3"-DN80 5"-DN125 |
2"-2.5" | ||
| DJ-20 | 30S-200N.M | - | DN80-4" | |
| 15S-100N.M |
5"-DN125 12"-DN300 |
DN65-3" | ||
| DJ-40 | 30S-400N.M | - | - | |
| 15S-200N.M | - | DN80-4" | ||
Material
The material connected with others: AISI 316L / 1.4404
The material in other part: AISI 304
Seal ring: EPDM FDA 177.2600
Internal surface finish: Ra ≤ 0.8μm
External surface finish: CNC fine machining
Operating Torque
| Operating Torque (n.m) | DN25 -1" | DN40 -1..5" | DN50 -2" | 2.5" | DN65 | 3" | DN80 | DN100 -4" | DN125 | DN150 |
| 3 | 4 | 5 | 10 | 12 | 14 | 18 | 25 | 40 | 55 |
Options
Gasket: NBR / MVQ / FPM
Manual handle or pneumatic actuator
Inductive position sensor
C - TOP control head
Position sensor
Connection type: SMS, RJT, DIN, 3A, ISO, Clamped, welded and threaded etc.
Packaging Details
Bubble pack for each valve.
Outside packing are carton or plywood cases.
Or as per the request of customers.
Delivery details
Usually within 20 days after receiving T/T down payment.
