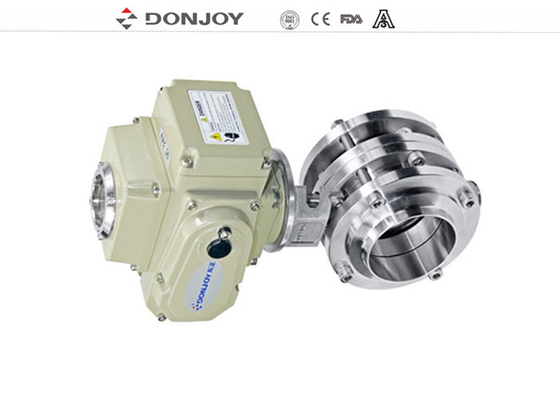

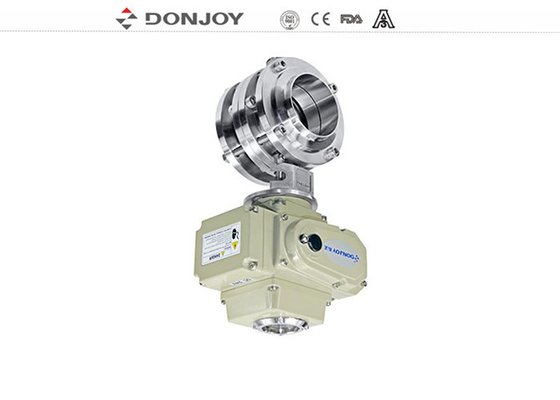

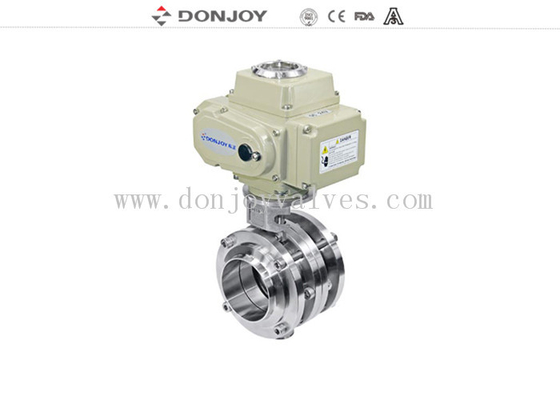

Sanitary Stainless Steel 4inch 316 AC220V Passive Output Switch type electronic 3PC Weld Butterfly Valve
Specifications
|
Product Name: |
Sanitary Stainless Steel 4inch 316 AC220V Passive Output Switch type electronic 3PC Weld Butterfly Valve |
|
Valve Body Material: |
SS304/316L |
|
Seal Material: |
EPDM (standard) FPM/SILICON/NBR, FDA177.2600 |
|
Max Working Pressure: |
10Bar |
|
Max.Working Temperature: |
120 degree C |
|
Available size: |
DN10-DN300, 1/2"-12" |
|
Available connection: |
Clamp/welding/thread/flange |
|
Available standard: |
3A/DIN/SMS/RJT/ISO/IDF |
|
Operated: |
Electric |
|
Control: |
Passive output Electric actuator |
|
Certificate: |
3A/54-02 (1580), PED/97/23/EC, FDA.177.2600, ISO |
|
Application scope: |
Dairy,food, beverage, pharmacy, cosmetic, etc |
|
Packaging Details: |
bubble pack for each valve. Outside packing is carton or |
|
Delivery details: |
Usually within 20 days after receiving T/T down payment. |
Drawing
|
|
Size | Torque | Recommend valve size | |
| Butterfly valve | Ball valve | |||
| DJ-5 | 30S-50N.M | ≤4"-DN100 | ≤2.5" | |
| 20S-30N.M | ≤3"-DN80 | ≤2"-DN50 | ||
| 10S-15N.M | ≤2.5"-DN65 | ≤1.5"-DN40 | ||
| DJ-10 | 30S-100N.M |
5"DN125 12"-DN300 |
DN65-3" | |
| 20S-60N.M |
4"-DN100 6"-DN150 |
2.5"-DN65 | ||
| 15S-50N.M |
3"-DN80 5"-DN125 |
2"-2.5" | ||
| DJ-20 | 30S-200N.M | - | DN80-4" | |
| 15S-100N.M |
5"-DN125 12"-DN300 |
DN65-3" | ||
| DJ-40 | 30S-400N.M | - | - | |
| 15S-200N.M | - | DN80-4" | ||
Material
The material connected with others: AISI 316L / 1.4404
The material in other part: AISI 304
Seal ring: EPDM FDA 177.2600
Internal surface finish: Ra ≤ 0.8μm
External surface finish: CNC fine machining
Operating Torque
| Operating Torque (n.m) | DN25 -1" | DN40 -1..5" | DN50 -2" | 2.5" | DN65 | 3" | DN80 | DN100 -4" | DN125 | DN150 |
| 3 | 4 | 5 | 10 | 12 | 14 | 18 | 25 | 40 | 55 |
Options
Gasket: NBR / MVQ / FPM
Manual handle or pneumatic actuator
Inductive position sensor
C - TOP control head
Position sensor
Connection type: SMS, RJT, DIN, 3A, ISO, Clamped, welded and threaded etc.
Packaging Details
Bubble pack for each valve.
Outside packing are carton or plywood cases.
Or as per the request of customers.
Delivery details
Usually within 20 days after receiving T/T down payment.
