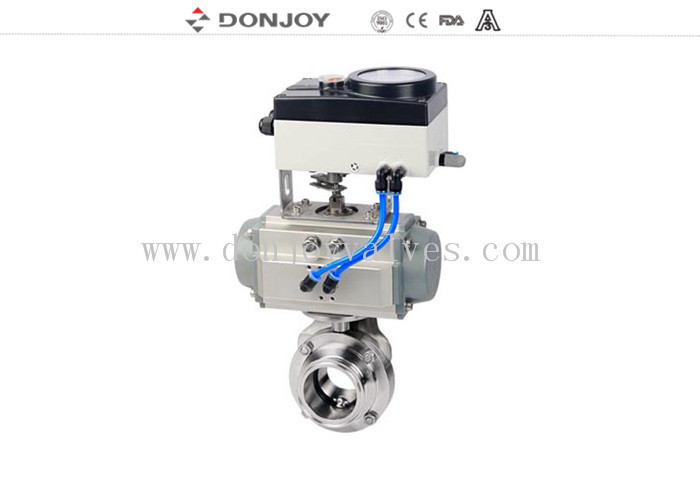

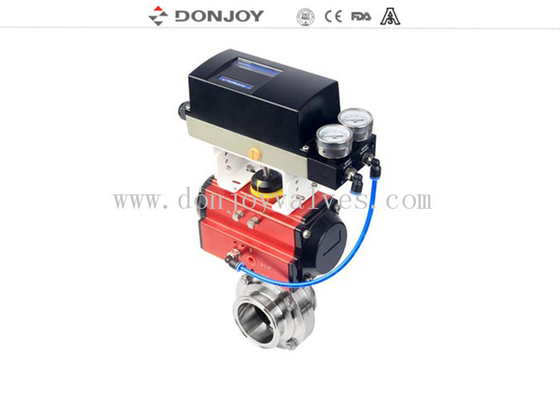

Hygenic inox normal close pneumatic clamp butterfly valve with intelligent horizontal positioner IL-TOP
Specifications
|
Product Name: |
Hygenic inox normal close pneumatic clamp butterfly valve with intelligent horizontal positioner IL-TOP |
|
Valve Body Material: |
SS304/316L |
|
Seal Material: |
EPDM (standard) FPM/SILICON/NBR, FDA177.2600 |
|
Max Working Pressure: |
10Bar |
|
Max.Working Temperature: |
120 degree C |
|
Availably size: |
DN10-DN300, 1/2"-12" |
|
Availably connection: |
Clamp/welding/thread/flange |
|
Availably standard: |
3A/DIN/SMS/RJT/ISO/IDF |
|
Operated: |
neumatic |
|
Control: |
Smart valve positioner / C-TOP control / position sensor |
|
Certificate: |
3A/54-02 (1580), PED/97/23/EC, FDA.177.2600, ISO |
|
Application scope: |
Dairy,food, beverage, pharmacy, cosmetic, etc |
|
Packaging Details: |
Bubble pack for each valve. Outside packing are carton or plywood cases. Or as per the request of customers. |
|
Delivery details: |
Usually within 20 days after receiving T/T down payment. |
Valve drawing
Pneumatic actuator date
| Double acting pneumatic actuator Torque Table | |||||
| Size | Torque(N.M) | Recommend valve size | |||
| Butterfly valve | Ball valve | 3 way ball valve | Industrial valve | ||
| DJ052 | 21 |
DN10-DN50, 0.5"-2" |
DN10-DN32, 0.5"-1.25" |
N/M | N/M |
| DJ063 | 37 |
DN65-DN80, 2.5"-3.5" |
DN40-DN50, 1.5"-2" |
DN25-DN32, 1"-1.25" |
DN25,1" |
| DJ075 | 59 | DN100,4" | 2.5" |
DN40-DN50, 1.5"-2" |
DN32-DN40, 1.25"-1.5" |
| DJ083 | 74 |
DN125-DN150, 5"-6" |
DN65,3" | DN65,2.5" | DN50,2" |
| DJ092 | 114 | DN200,8" | DN80 | 3" | DN65,2.5" |
| DJ105 | 170 |
DN250-DN300, 10"-12" |
DN100,4" | DN80 | DN80,3" |
| DJ125 | 292 | N/M | DN125,5" | DN100,4" | DN100,4" |
| DJ140 | 439 | N/M | DN150,6" | N/M | DN150,6" |
| DJ160 | 669 | N/M | DN200,8" | N/M | DN200,8" |
| Single acting pneumatic actuator Torque Table | |||||
| Size | Torque(N.M) | Recommend valve size | |||
| Butterfly valve | Ball valve | 3 way ball valve | Industrial valve | ||
| DJ052-S | 12.5-8.5 |
DN10-DN32, 0.5"-1.25" |
DN10-DN15, 0.5"-0.75" |
N/M |
DN10-DN15, 0.5"-0.75" |
| DJ063-S | 21.2-13.7 |
DN40-DN50, 1.5"-2" |
DN25,1"
|
DN25,1" | DN25,1" |
| DJ075-S | 292.2-21.2 | DN65,2.5"-3" | DN32,1.25" |
DN32,1.25"
|
DN32-1.25" |
| DJ083-S | 46.5-31.6 | DN80,3.5" | DN401.5" | DN40,1.5" | DN40,1.5" |
| DJ092-S | 69.3-46.7 | DN100,4" | DN50,2" | DN50,2" | DN50,2" |
| DJ105-S | 99-63 |
DN200-DN250
|
DN65,2.5" | N/M | DN65,2.5" |
| DJ125-S | 159-105 | N/M | DN80,3" | DN80,3" | N/M |
| DJ140-S | 260-172 | N/M | DN100,4" | DN100,4" | DN80,3" |
| DJ160-S | 422-279 | N/M | N/M | N/M | DN100,4" |
Positioner IL-TOP
| Horizontal pneumatic positioner IL-TOP 1441 (Recommend version) | |
|
Description |
| Analog signal input 4-20mA (Standard version) | |
| Analog signal input 4-20mA (standard version) +MODBUS RS485 bus control | |
| Horizontal pneumatic positioner IL-TOP 1441 (Feedback version) | |
|
Description |
| Analog signal input /output 4-20mA 0-5/10V (Feedback version) | |
| Analog signal input /output 4-20mA 0-5/10V (Feedback version)+Process control version | |
| Horizontal pneumatic positioner IL-TOP 1441 -Separate type |
| Separate positioner IL-TOP and control unit C-TOP |
Material
The material connected with others: AISI 316L / 1.4404
The material in other part: AISI 304
Seal ring: EPDM FDA 177.2600
Inernal surface finish: Ra ≤ 0.8μm
External surface finish: CNC fine machining
Options
Gasket: NBR / MVQ / FPM
Pneumatic actuator of double acting
Inductive position sensor
C - TOP control head
Position sensor
Connection type: SMS, RJT, DIN, 3A, ISO, Clamped, welded and threaded etc.
