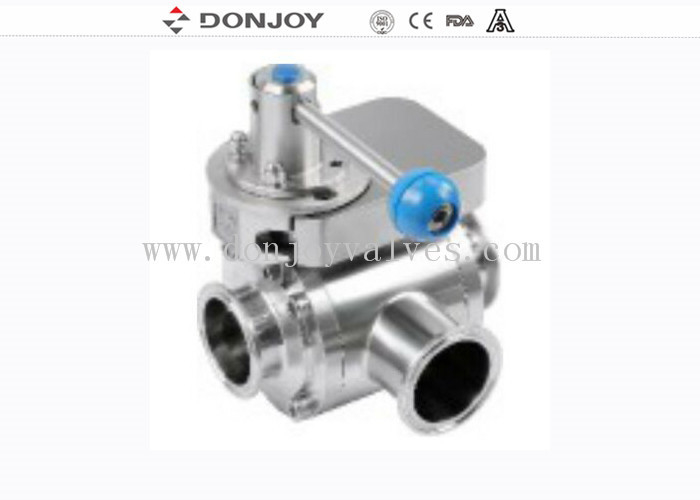

DONJOY stainless steel 304 manual 3 way butterfly valve tri clamp ends 1.5 inches
Specifications
|
Product Name: |
Three-way butterfly valve with pull handle |
|
Valve Body Material: |
SS304/316L |
|
Seal Material: |
EPDM (standard) FPM/SILICON/NBR, FDA177.2600 |
|
Pressure: |
Vacuum to 10Bar |
|
Temperature: |
-20 degree to 130 degree,depending on the seal material |
|
Available size: |
1''-6'', DN25-DN150 |
|
Available connection: |
Clamp/welding/thread/special connection |
|
Available standard: |
3A/DIN/SMS/RJT/ISO/IDF |
|
Operated: |
Manual,Pneumatic, Electric |
|
Handle application: |
Two-position handle, three-position handle, four-position pull handle, multi-position plastic handle and multi-position stainless steel handle |
|
Control: |
Smart valve positioner / C-TOP control / position sensor |
|
Certificate: |
3A/54-02 (1580), PED/97/23/EC, FDA.177.2600, ISO |
|
Application scope: |
Dairy,food, beverage, pharmacy, cosmetic, etc |
|
Structure: |
3 ports with 1 handle |
|
Feature: |
The valve body of various connections could be displaced. |
Drawing
Synchronous three-way butterfly valve:
One drive device can realize L type and T type three-way applications, opening and closing synchronization, low torque,long life, non-retention,
no dean angles, very flexible function combination,and it is efficient, economical and simple

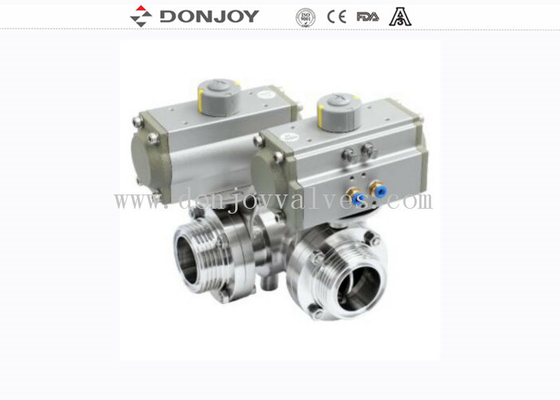

Asynchronous three way butterfly valve:
Multiple drive devices,each drive independently and freely control the valve
Handle selection
Two-position handle;
Three-position handle;
Four-position pull handle;
Multi-position plastic handle;
Multi-position stainless steel handle;
Connection
Clamped, welded and threaded etc.
Packaging Details
Bubble pack for each valve.
Outside packing is carton or plywood cases.
Or as per the request of customers.
Delivery details
Usually within 20 days after receiving T/T down payment.
Description
Please check the picture below for detailed information.
FAQ
Q1. What is your terms of packing?
A: Generally, we pack our goods in a plywood case or carton package for small parts.
If delivery by sea,the package is wooden box.
Q2. What is your terms of payment?
A: T/T in advance, 30% as deposit, and finish 70% balance payment before delivery
T/T in advance, 50% as deposit, and finish 50% balance payment before delivery
100% TT in advance
Q3. What is your terms of delivery?
A: EXW, FOB, CIF, DDU.
Q4. How about your delivery time?
A: Generally, it will take 3 to 40 working days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
Q5. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings.
Q6.Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery
