| ब्रांड नाम: | Donjoy |
| मॉडल संख्या: | NO.Vgj210s1 |
| न्यूनतम आदेश मात्रा: | Negotiation |
| कीमत: | बातचीत योग्य |
| पैकेजिंग विवरण: | carton box |
| भुगतान की शर्तें: | T/T, LC, Credit Card |

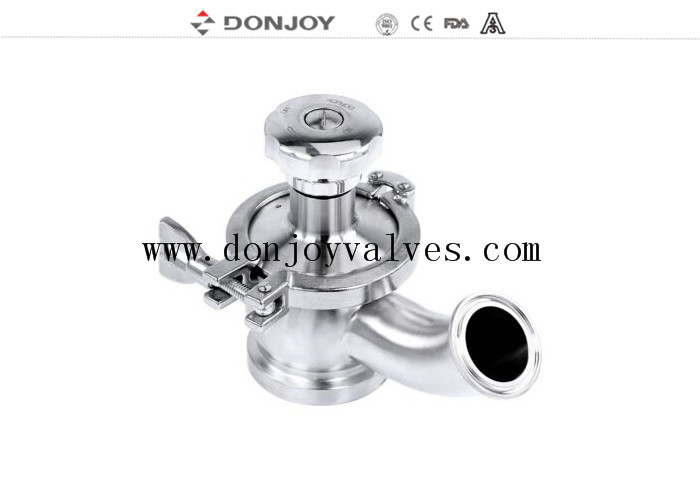

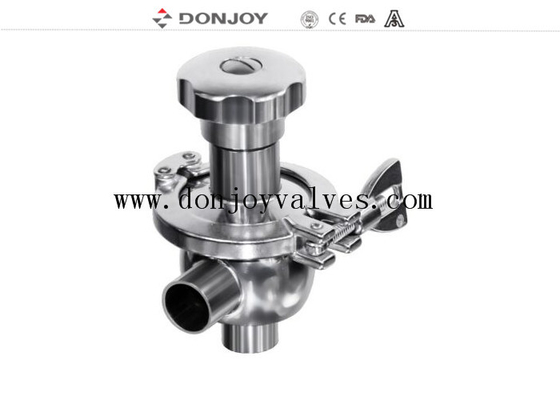

Re316L Aseptic Radial tank bottom diaphragm valve for cosmetic and food
Applications
Diaphragm valves, manually or pneumatically operated, are specifically designed for use on hygiene and aseptic processes in the pharmaceutical industries.
The valve is excellent for flow control as well as open/close control.
The diaphragm valves are better in feature of flow in comparison with other valves.
It is eaiser to clean up and better to process the substance with particles.
The phenomenon of air pocket is rare during application of flow control.
Specifications
|
Product Name: |
Tank bottom diaphragm valve |
|
Valve Body Material: |
SS316L |
|
Seal Material: |
EPDM |
|
Max Working Pressure: |
6Bar |
|
Max.Working Temperature: |
-10 to 120 degree |
|
Available size: |
3/4"-2.5",DN20-DN65 |
|
Available connection: |
Clamp / welding / thread / special connection |
|
Available standard: |
3A / BPE / DIN / ISO / IDF |
|
Operation |
Manual, pneumatic |
|
Certificate: |
3A/54-02 (1580), PED/97/23/EC, FDA.177.2600 |
|
Application scope: |
Dairy,food, beverage, pharmacy, cosmetic, etc |
●Mainly used in pharmaceutical, biotechnology, health care, cosmetics and food industry etc.
●In the pharmaceutical industry, the valve can be used as process control valves, dosing valves, sampling valves and sterile drain valve, etc.
●In the food industry, the valve is often used as the guiding device, such as sampling valve, dosing valve (such as adding CO2/Nitrogen to beer, add seasoning to drink). Radial diaphragm valves, mainly manual and pneumatic valve body, internal polished finish Ra is less than or equal to 0.5um, to meet the requirements of bio pharmaceutical industry.
●Size:3/4"-2.5",DN20-DN65
●Working temperature:-10℃-120℃(EPDM/Silcon)
●Max.Pressure:6bar
●operation:Manual / pneumatic interchangeable
●Operating Pressure:5bar-6bar
●Outlet connection: Clamp, weld,Special interface
●New diaphragm design
●Maintenance is simple, safe, easy to operate
●Self emptying function
●Dead angle minimization
●Excellent value KV
●CIP/SIP Sterilizing and cleaning
Product drawing
