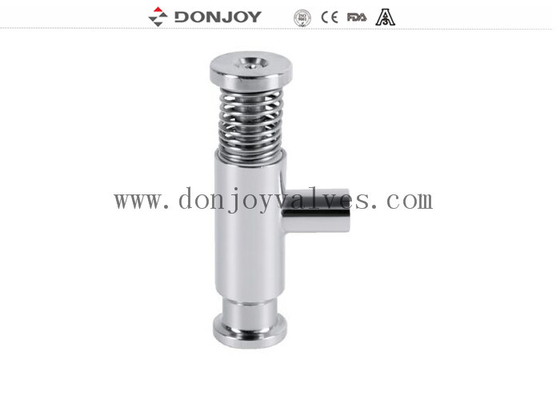

DONJOY SS316L Yugurt sampling valve with tri clamp connection
Sample Valve
Size:50.5mm
Type: Press type
Gasket: EPDM,PTFE
Working Pressure:6Bar
Polished: Mirror, Mattr, Ra≤0.8μm,Ra≤0.5μm
Specification
|
Product Name: |
Manual elliptic type handle Sanitary Sample Valve Thread Connection Ra≤0.8μm |
|
Material: |
AISI304, AISI316L |
|
Size: |
1/2" |
|
Finish: |
Ra ≤0.8um,Mirror, 320Grit, 180Grit, 240Grit |
|
Connection: |
Welded,Clamped |
|
Standard: |
DIN,3A,SMS,ISO |
|
Certificate: |
CE, ISO9001/2008, 3A |
|
Application scope: |
Dairy, food, beer, beverage, pharmacy, cosmetic,Oil,Waste water etc |
|
Packaging Details: |
Shrink wrapped - carton - pallet . Or as per the request of customers |
1.The valve seat open inside of tank or other equipment that it can avoid opening by accident due to high pressure in pipeline.
2. The valve is normally closed ( by spring), the valve is open as soon as pushing the handle and closed when loosing up.
3.The design of completely drainage water is to avoid remains inside.
Drawing
