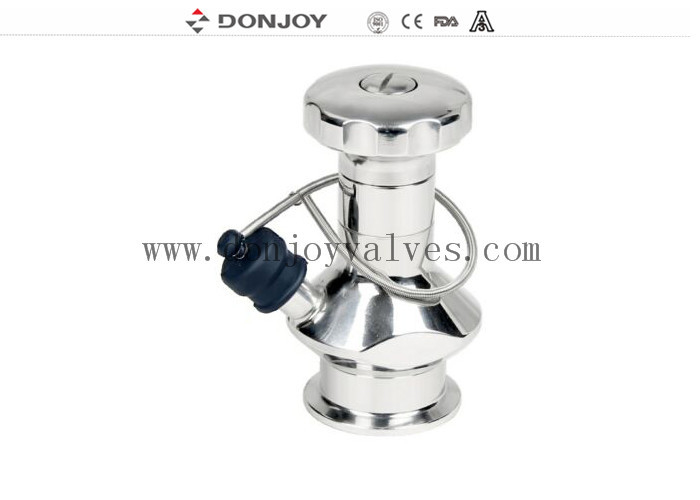

Stainless steel manual aspetic sampling valve with single sample port
Quick Detail
Sampling Valve
Size:12.7mm,1/2",3/8",1/2",3/4"
Type: Automatic return type (Manual)
Gasket: EPDM,PTFE
Working Pressure:6Bar
Temperature: 130 Degree(EPDM) 150Degree(PTFE)
Polished: Mirror, Mattr, Ra≤0.8μm,Ra≤0.5μm
Connection: Thread, clamp, Weld, Tank welding
Certificate: PED97/23/EC,FDA 177.2600
Specification
|
Product Name: |
Stainless steel manual aspetic sampling valve with single sample port |
|
Material: |
AISI316L |
|
Size: |
1/2" |
|
Finish: |
Ra ≤0.8um,Mirror, 320Grit, 180Grit, 240Grit |
|
Connection: |
Welded,Clamped |
|
Standard: |
DIN,3A,SMS,ISO |
|
Certificate: |
CE, ISO9001/2008, 3A |
|
Application scope: |
Dairy, food, beer, beverage, pharmacy, cosmetic,Oil,Waste water etc |
|
Packaging Details: |
Shrink wrapped - carton - pallet . Or as per the request of customers |
Drawing
Application :
The aseptic sampling valve is applied to beer, milk, beverage, fruit juice, pahmacy industries etc...
Relate products

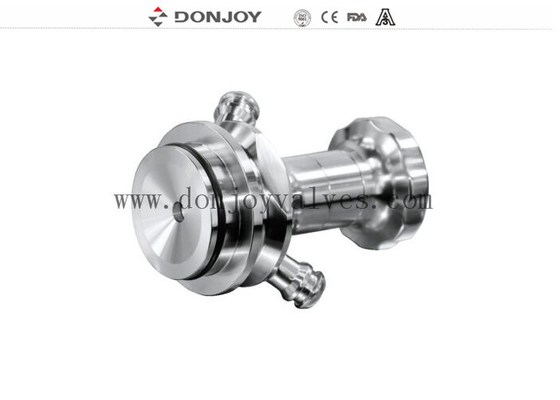

Valve body with various configurations
Tag : Sampling valve, Donjoy Valve, Sanitary valves
