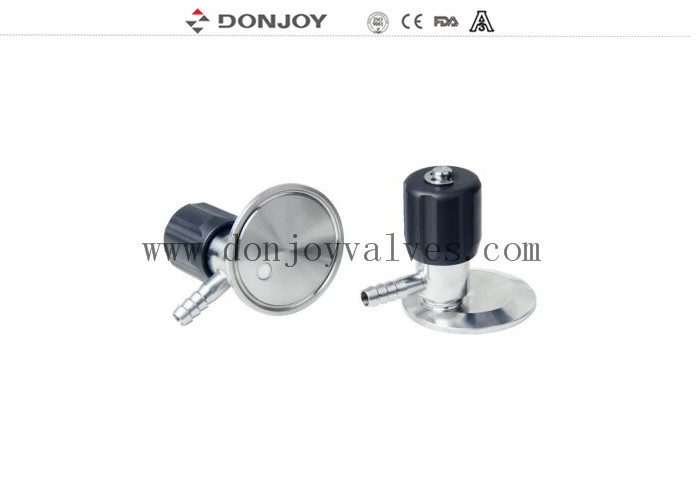

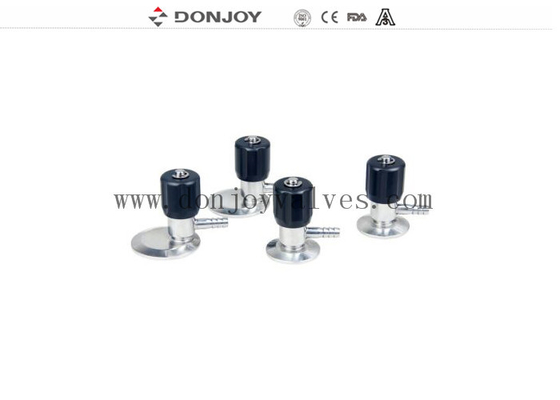

SS316 Eccentric non-retention sampling valve with clamp connection
Specification
|
Product Name: |
Sanitary Stainless Sample valve Clamped Connection,SS304/ss316L |
|
Material: |
AISI304, AISI316L |
|
Size: |
12.7mm,1/2",3/8",1/2",3/4" |
| Type: | Manual |
| Gasket: | EPDM,PTFE |
| Working Pressure: | 6 bar |
|
Finish: |
Ra ≤0.8um,Mirror, 320Grit, 180Grit, 240Grit |
|
Connection: |
Welded,Clamped |
|
Standard: |
DIN,3A,SMS,ISO |
|
Certificate: |
CE, ISO9001/2008, 3A |
|
Application scope: |
Dairy, food, beer, beverage, pharmacy, cosmetic,Oil,Waste water etc |
|
Packaging Details: |
Shrink wrapped - carton - pallet . Or as per the request of customers |
Introduction
Its mainly applied to extract sample from tank or pipeline, it also can be assembled at the bottom of the tank or pipeline to drain away the remains. when turn the hand wheel clockwise, the valve shaft and seal rise up , At this time , valve is open for sampling, When trun the hand wheel anti-clockwise, the valve shaft and seal go down, at that time, the valve is closed.
