| ब्रांड नाम: | DONJOY |
| मॉडल संख्या: | NO MODEL |
| न्यूनतम आदेश मात्रा: | Negotiation |
| पैकेजिंग विवरण: | WOODEN CASE, CARTONS |
| भुगतान की शर्तें: | T/T,L/C, Credit Card |

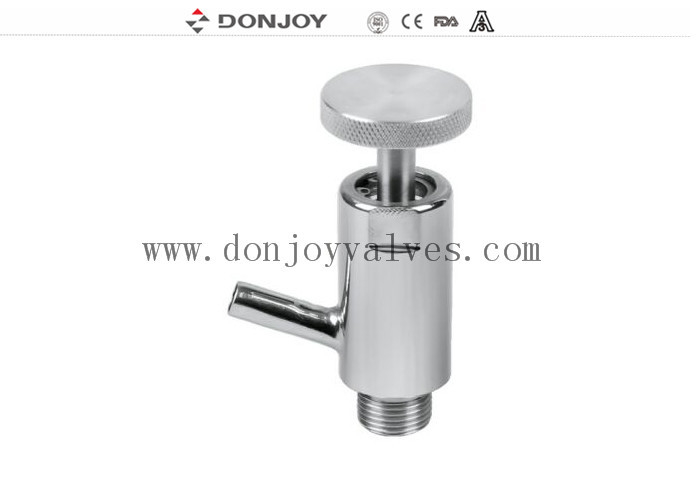

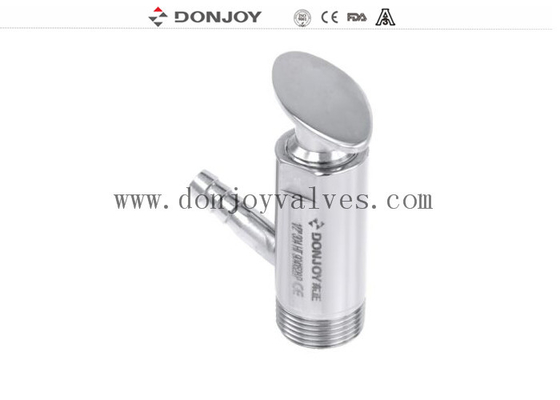

Manual Sanitary Thread Pattern type handwheel sampling valve
Quick Detail
Sample Valve
Size:12.7mm,1/2",3/8",1/2",3/4"
Type: Manual
Gasket: EPDM,PTFE
Working Pressure:6Bar
Polished: Mirror, Mattr, Ra≤0.8μm,Ra≤0.5μm
Specification
|
Product Name: |
Sanitary Stainless Sample valve Thread Connection,SS304/ss316L |
|
Material: |
AISI304, AISI316L |
|
Size: |
1/2" |
|
Finish: |
Ra ≤0.8um,Mirror, 320Grit, 180Grit, 240Grit |
|
Connection: |
Welded,Clamped |
|
Standard: |
DIN,3A,SMS,ISO |
|
Certificate: |
CE, ISO9001/2008, 3A |
|
Application scope: |
Dairy, food, beer, beverage, pharmacy, cosmetic,Oil,Waste water etc |
|
Packaging Details: |
Shrink wrapped - carton - pallet . Or as per the request of customers |
Donjoy Sampling valves are used in piping systems or on tanks for sampling. It can also be assembled at the bottom of the tank or pipeline for residue drain. DONJOY Sanitary Sampling Valves are available with butt weld or sanitary clamp end connections with hose barb discharge as standard
This sample valve is used for low viscosity materials, such as water, beer, wine, fluid milk, and so on. When rotating the handle wheel clockwise, the valve will be open for sampling. When rotating the handle wheel anti-clockwise, the valve will be closed.
Drawing
