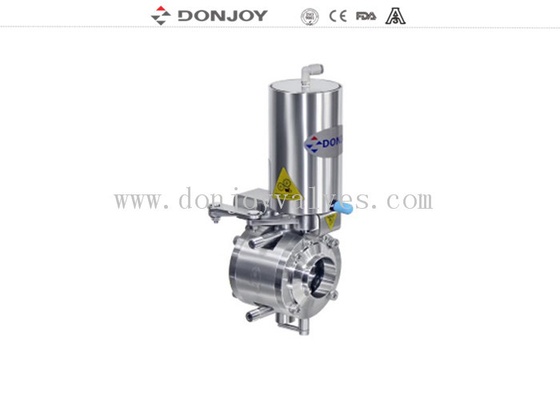

DN65 Donjoy Double seat butterfly valve B type with valve chamber can be flushed
Internal leakage can be ovserved
valve chamber can be flushed
Zero risk of contanination
Details
Gasket: NBR, MVQ, FPM, EPDM
Connection: SMS, RJT, DIN,3A,ISO, Triclamp , thread, Flange, Welding

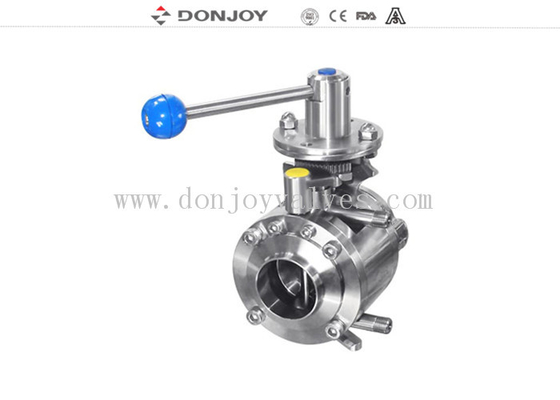

Operation: Manual, Pneumatic actuator, Contorl head, Position Sensor
Specifications
|
Product Name: |
Donjoy Double seat butterfly valve B type with valve chamber can be flushed |
|
Valve Body Material: |
SS316L |
|
Seal Material: |
EPDM (standard) FPM/SILICON/NBR, FDA177.2600 |
|
Max Working Pressure: |
10Bar |
|
Max.Working Temperature: |
120 degree C |
|
Available size: |
DN50-DN100,2"-4" |
|
Available connection: |
Clamp/welding/thread/special connection |
|
Available standard: |
3A/DIN/SMS/RJT/ISO/IDF |
|
Operated: |
Manual,Pneumatic, Electric |
|
Handle application: |
Two-position handle / three-position handle / four-position pull handle / multi-position plastic handle / multi-position stainless steel handle |
|
Control: |
Smart valve positioner / C-TOP control / position sensor |
|
Certificate: |
3A/54-02 (1580), PED/97/23/EC, FDA.177.2600, ISO |
|
Application scope: |
Dairy,food, beverage, pharm |
|
Grade of handle: |
3 - grade |
The mixproof butterfly valve as a process element for the separation of media is suitable for a variety of applications
In CIP systems, for separating CIP media
Drawing of valve
Packaging Details
Bubble pack for each valve.
Outside packing is carton or plywood cases.
Or as per the request of customers.
Delivery details
Usually within 20 days after receiving T/T down payment.
Tag : Donjoy Valves, Double seat valve, Mixing proof butterfly valves
