| ब्रांड नाम: | DONJOY |
| मॉडल संख्या: | ASEPTIC TYPE |
| न्यूनतम आदेश मात्रा: | Negotiation |
| पैकेजिंग विवरण: | WOODEN CASE, CARTONS |
| भुगतान की शर्तें: | T/T,L/C, Credit Card |

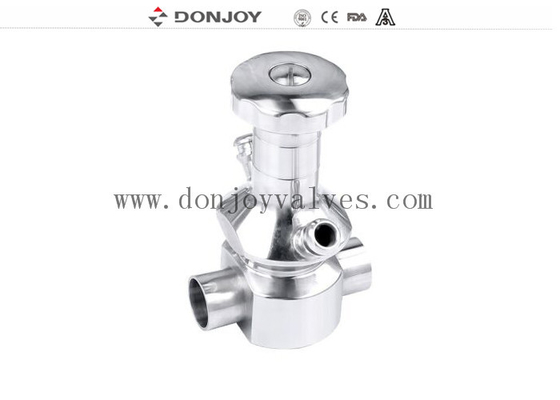

DONJOY ASEPTIC SAMPING VALVE WITH PIPELINE CONNECTOR FOR TANK
Specification
|
Product Name: |
DONJOY ASEPTIC SAMPING VALVE WITH PIPELINE CONNECTOR FOR TANK |
|
Material: |
AISI304, AISI316L |
|
Size: |
1"-2" |
|
Finish: |
Ra ≤0.8um,Mirror, 320Grit, 180Grit, 240Grit |
|
Connection: |
Welded, Flange |
|
Standard: |
DIN,3A,SMS,ISO |
|
Certificate: |
CE, ISO9001/2008, 3A |
|
Application scope: |
Dairy, food, beer, beverage, pharmacy, cosmetic,Oil,Waste water etc |
|
Packaging Details: |
Shrink wrapped - carton - pallet . Or as per the request of customers |
Introduction
The aseptic sampling valve is designed for sterilization before and after each sampling.
Open :Sampling-the manual valve is opened by rotating the handle (adjustable value) or by activating the lever (on/off valve), the stem and the membrance are then retracted, allow liquid to pass.
Closed: Sterilizing-the built-in spring closes the valve and keeps the channel open between the hoses though reverse process in order to sterilize.If using by steam, a small pressure relief valve (optional) on the outlet is recommended.
Standard design: the aseptic sampling valve consists of three parts, a valve body, a handle and a membarnce, the rubber.
Handle:(1) Turning handle (2) removable key
Application: The aseptic sampling valva is applied to beer,milk, beverage, fruit juice, pharmacy industries .
Working principles
Relate products

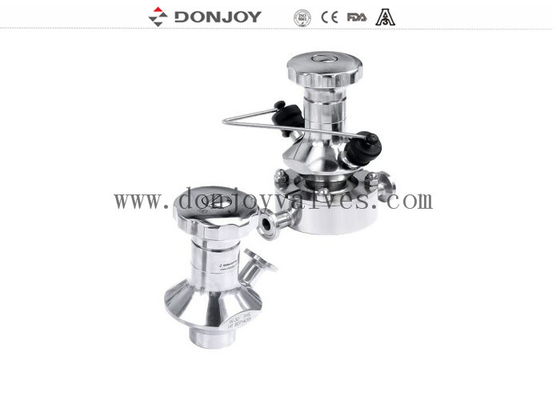

Valve body with various configurations:
Tag : Sampling Valve, Donjoy Valves, Regulating valve
