| ब्रांड नाम: | Donjoy |
| मॉडल संख्या: | NO.T-H |
| न्यूनतम आदेश मात्रा: | Negotiation |
| कीमत: | बातचीत योग्य |
| पैकेजिंग विवरण: | carton box |
| भुगतान की शर्तें: | T/T, LC, Credit Card |

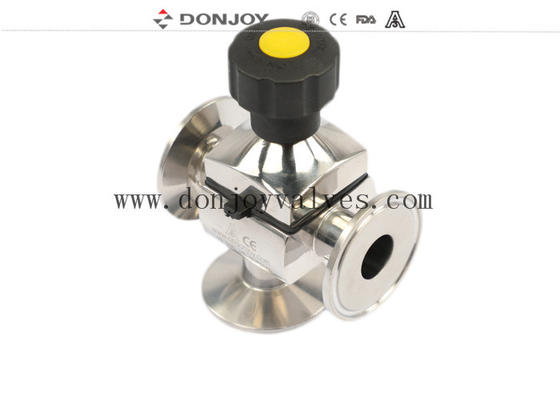

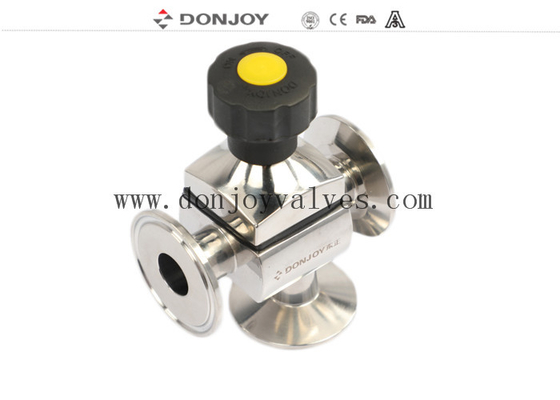

SS316L 1/2" Sanitary Diaphragm Valve L Type With No Dead Leg
3 way diaphragm valve
L type diaphragm valves
Multi port diaphragm valves
Donjoy diaphragm valves
Specifications
|
Product Name: |
Pneumatic Radial Diaphragm Valve for phamacy hygienic process |
|
Valve Body Material: |
SS316L |
|
Seal Material: |
Single sillcone gasket/ Adhesive PTFE+EPDM/Two pieces PTFE+EPDM |
|
MaxWorking Pressure: |
6 Bar |
|
Max.Working Temperature: |
120 degree C |
|
Availably size: |
3/4''-2.5'', DN20-DN65 |
|
Availably connection: |
Clamp/weld/thread/special connection |
|
Availably standard: |
3A/BPE/DIN/ISO/IDF |
|
Operated: |
Manual,Pneumatic |
|
Availably structure: |
Straight, tee, U-type, tank bottom |
|
Control: |
Smart valve positioner / C-TOP control / position sensor |
|
Certificate: |
3A/54-02 (1580), PED/97/23/EC, FDA.177.2600 |
|
Application scope: |
Dairy,food, beverage, pharmacy, cosmetic, etc |
|
Logo of product: |
With "DONJOY" or customized |
|
Combination of valve and actuator: |
Flexible combination on valve body |
Description
Various configuration of Diaphragm valve
1. Didaphragm valve with Pisitioner/Process Controller(IL-TOP)
2. Diaphragm valve with Control Unit(C-Top)
3. Valve position Regulator
4. Position Sensor Module
5. Plastic Handle
6. Stainless steel handle
7. Stianless steel acutor
8. Electric Diaphragm valve
9. Plastic Acutor
Certificate
3A / 54-02 (1580), PED / 97 / 23 / EC, FDA. 177. 2600
Diaphragm valve Gasket
1. EPDM/ Silicone
2.EPDM+PTFE Ahersive
3.EPDM/EPDM Seperate
Product drawing
Valve Body
Surface Ra
Body :
Casting/ Forging
Packaging
Bubble pack for each valve. Outside packing are carton or plywood cases.
Or as per the request of customers.
Delivery
Usually within 20 days after receiving T/T down payment.
Phamacy valve, Control valve, Donjoy Valves
