| ब्रांड नाम: | DONJOY |
| मॉडल संख्या: | 40016 |
| न्यूनतम आदेश मात्रा: | Negotiation |
| पैकेजिंग विवरण: | Carton, Wooden Case |
| भुगतान की शर्तें: | T/T,L/C, Credit Card |

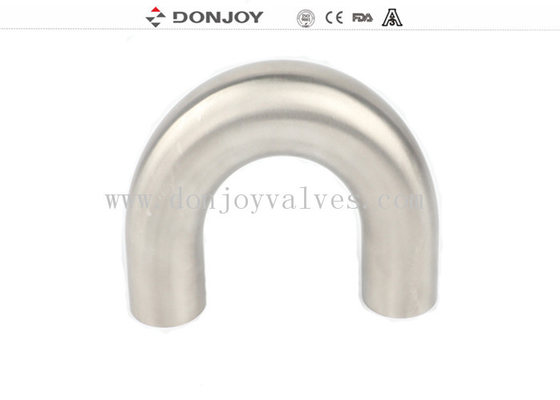

1/2” - 6” 3A Stainless Steel Sanitary Fittings 180 degree welded Bend Matt Polished
Quick Detail
Stainless steel 180 Degree Elbow(Bend)
Standard: 3A,BS4852,AS1528, DN1852,DS,ISO,ISO1127,SMS,IDF,BPE
Specification
|
Product Name: |
1/2”-6” 3A sanitary 180 degree welded Bend Matt Polished for food grade |
|
Material: |
AISI304, AISI316L |
|
Size: |
1/2"-"6" |
|
Finish: |
mirror polish, stain finish,no polish |
|
Connection: |
weld ends |
|
Standard: |
Standard: 3A,BS4852,AS1528, DN1852,DS,ISO,ISO1127,SMS,IDF,BPE |
|
Certificate: |
CE, ISO9001/2008, 3A |
|
Application scope: |
Dairy, food, beer, beverage, pharmacy, cosmetic, etc |
|
Packaging Details: |
Shrink wrapped - carton - pallet . Or as per the request of customers |
Competitive Advantage
“DONJOY is the only company that pass nine series of products by American 3A certification
organization in Asian sanitary pumps and valves field.”
Application
Applied to the industry of milk, wine, beverage, cheese, food, sauce, edible oil, brewage, meat
processing, preserved fruit, cosmetic, biology, chemical industry, pharmacy and so on.
Question And Answer
Q1. Where is your factory?
Our factory located in Wenzhou,China.
Q2. What material do you have?
SS304//SS316
Q3. Can you provide sample for us?
Yes, free sample is available.Welcome your contact.
Q4. How about your delivery time ?
For small order within 7 days. For the mass order depends on your order.
product drawing
| Size | L(mm) | H(mm) | D(mm) | Thickness(mm) |
| 1/2" | 114.3 | 76.2 | 12.7 | 1.65 |
| 3/4" | 114.3 | 76.2 | 19.1 | 1.65 |
| 1" | 76.2 | 68.1 | 25.4 | 1.65 |
| 1.25" | 95.3 | 77.6 | 31.8 | 1.65 |
| 1.5" | 114.3 | 87.2 | 38.1 | 1.65 |
| 2" | 152.4 | 106.2 | 50.8 | 1.65 |
| 2.5" | 190.5 | 125.3 | 63.5 | 1.65 |
| 3" | 228.6 | 144.3 | 76.2 | 1.65 |
| 4" | 304.8 | 182.4 | 101.6 | 2.1 |
| 5" | 381.0 | 230.5 | 127.0 | 2.1 |
| 6" | 457.2 | 268.6 | 152.4 | 2.8 |
