| ब्रांड नाम: | Donjoy |
| मॉडल संख्या: | NO.MINI - ZZ - K |
| न्यूनतम आदेश मात्रा: | Negotiation |
| कीमत: | बातचीत योग्य |
| पैकेजिंग विवरण: | carton box |
| भुगतान की शर्तें: | T/T, LC, Credit Card |

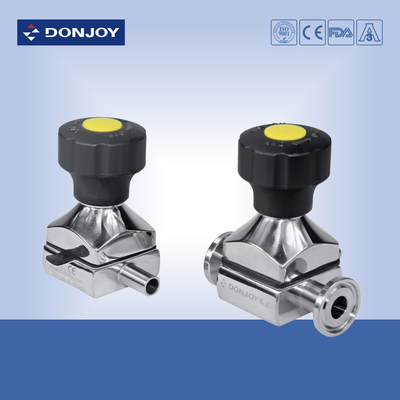

Mini Direct way Clamp Sanitary Diaphragm Valve with plastic handwheel
Specifications
|
Product Name: |
316L SS Mini Direct way Clamp Diaphragm Valve |
|
Valve Body Material: |
SS316L |
|
Seal Material: |
Single sillcone gasket/ Adhesive PTFE+EPDM/Two pieces PTFE+EPDM |
|
MaxWorking Pressure: |
8 Bar |
|
Max.Working Temperature: |
150 degree C |
|
Availably size: |
1/4”-3/4”, DN6-DN15 |
|
Availably connection: |
Clamp/weld/thread/special connection |
|
Availably standard: |
3A/BPE/DIN/ISO/IDF |
|
Operated: |
Pneumatic,Manual |
|
Availably structure: |
Straight, tee, U-type, tank bottom |
|
Control: |
Smart valve positioner / C-TOP control / position sensor |
|
Certificate: |
3A/54-02 (1580), PED/97/23/EC, FDA.177.2600 |
|
Leading design: |
Dead conner ＜ 3D |
|
Various combinations: |
GMP and SAP structure |
Description
Various configuration of Diaphragm valve
1. Didaphragm valve with Pisitioner/Process Controller(IL-TOP)
2. Diaphragm valve with Control Unit(C-Top)
3. Valve position Regulator
4. Position Sensor Module
5. Plastic Handle
6. Stainless steel handle
7. Stianless steel acutor
8. Electric Diaphragm valve
9. Plastic Acutor
10. Body: Casting / Forging

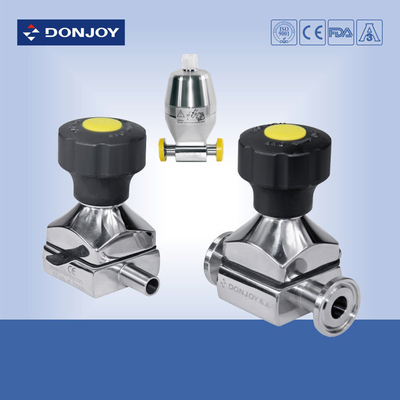

Mini - type diaphragm valve - with various combination
