| ब्रांड नाम: | Donjoy |
| मॉडल संख्या: | 12030902 |
| न्यूनतम आदेश मात्रा: | Negotiation |
| कीमत: | बातचीत योग्य |
| पैकेजिंग विवरण: | carton box |
| भुगतान की शर्तें: | T/T, LC, Credit Card |

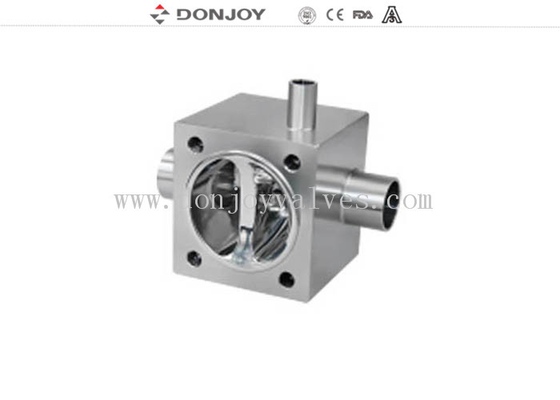

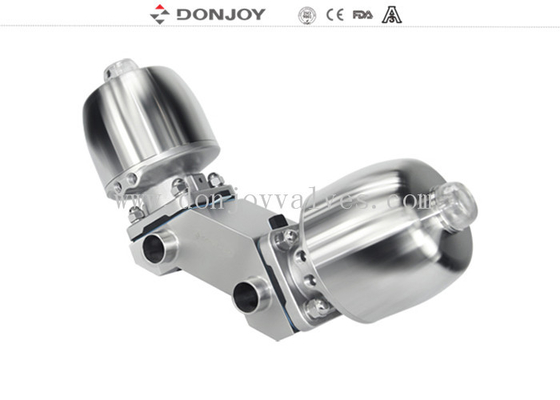

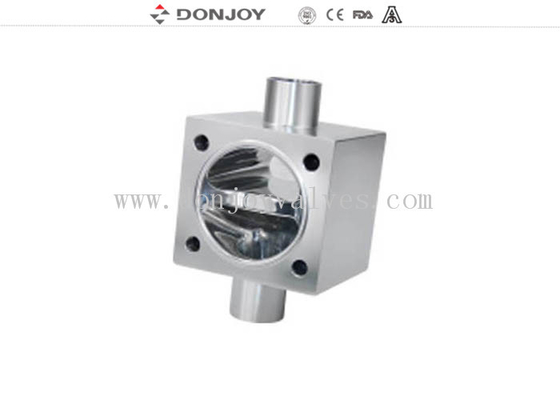

SS316L sanitary multiport Sanitary Diaphragm Valve for controlling flow
Specifications
|
Product Name: |
SS Sanitary Multiport Pneumatic Diaphragm Valve |
|
Valve Body Material: |
SS316L |
|
Seal Material: |
Single sillcone gasket / Adhesive PTFE+EPDM / Two pieces PTFE+EPDM |
|
Max Working Pressure: |
10 Bar |
|
Max.Working Temperature: |
130 degree C |
|
Availably size: |
1"-3" DN25-DN80 |
|
Availably connection: |
Clamp/weld/thread/special connection |
|
Availably standard: |
3A/BPE/DIN/ISO/IDF |
|
Operated: |
Manual,Pneumatic |
|
Availably structure: |
Straight, tee, U-type, tank bottom |
|
Control: |
Smart valve positioner / C-TOP control / position sensor |
|
Certificate: |
3A/54-02 (1580), PED/97/23/EC, FDA.177.2600 |
|
Application scope: |
Dairy,food, beverage, pharmacy, cosmetic, etc |
|
Feature: |
Aseptic valve body |
|
Direction of input and output: |
On side way |
Description
Various configuration of Diaphragm valve
1.Didaphragm valve with Pisitioner/Process Controller(IL-TOP)
2.Diaphragm valve with Control Unit(C-Top)
3.Valve position Regulator
4.Position Sensor Module
5.Plastic Handle
6.Stainless steel handle
7. Stianless steel acutor
8. Electric Diaphragm valve
9. Plastic Acutor
10. Body: Casting / Forging
Packaging Details
Bubble pack for each valve.
Outside packing are carton or plywood cases.
Or as per the request of customers.
Delivery details
Usually within 20 days after receiving T/T down payment.
Drawing
Please check the size form below for detailed information.
