| ब्रांड नाम: | Donjoy |
| मॉडल संख्या: | NO.VGM0S2, NO.UC-H |
| न्यूनतम आदेश मात्रा: | Negotiation |
| कीमत: | बातचीत योग्य |
| पैकेजिंग विवरण: | carton box |
| भुगतान की शर्तें: | T/T, LC, Credit Card |

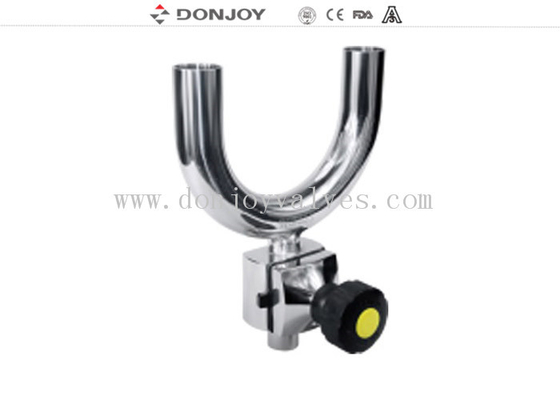

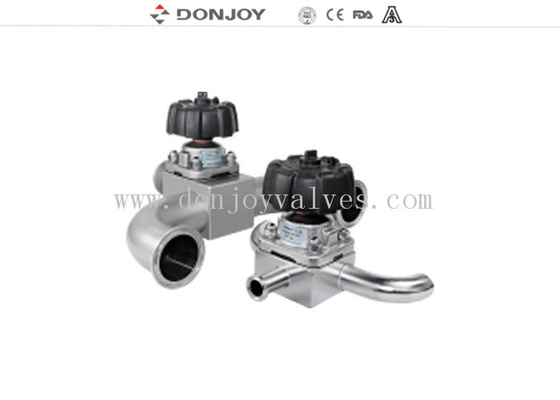

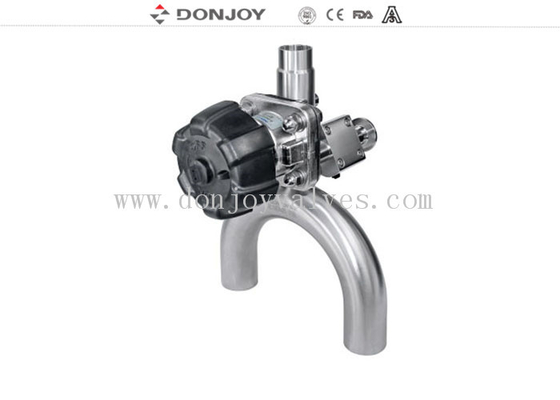

316 L SS Pneumatic Regulating Clamp U - C Tee diaphragm valve with IL-TOP
Specifications
|
Product Name: |
316 L SS Pneumatic Regulating Clamp U - C Tee diaphragm |
|
Valve Body Material: |
SS316L |
|
Seal Material: |
Single sillcone gasket/ Adhesive PTFE+EPDM/Two pieces |
|
MaxWorking Pressure: |
10Bar |
|
Max.WorkingTemperature: |
120 degree C |
|
Availably size: |
1''-4'', DN25-DN100 |
|
Availably connection: |
Clamp/welding/thread/special connection |
|
Availably standard: |
3A/BPE/DIN/ISO/IDF |
|
Operated: |
Manual,Pneumatic |
|
Availably structure: |
Straight, tee, U-type, tank bottom |
|
Control: |
Smart valve positioner / C-TOP control / position sensor |
|
Certificate: |
3A/54-02 (1580), PED/97/23/EC, FDA.177.2600 |
|
Application scope: |
Dairy,food, beverage, pharmacy, cosmetic, etc |
|
Direction of valve: |
Be upward |
|
Number of port: |
Tri - directional |
Description
Various configuration of Diaphragm valve
1. Didaphragm valve with Pisitioner/Process Controller(IL-TOP)
2. Diaphragm valve with Control Unit(C-Top)
3. Valve position Regulator
4. Position Sensor Module
5. Plastic Handle
6. Stainless steel handle
7. Stianless steel actuator
8. Electric Diaphragm valve
9. Plastic Actuator
10. Body: Casting / Forging
Packaging Details
Bubble pack for each valve.
Outside packing are carton or plywood cases.
Or as per the request of customers.
Delivery details
Usually within 20 days after receiving T/T down payment.
Drawing
Please check the size form below for detailed information.
Re: U point diaphragm valve, Donjoy diaphragm valve. Sanitary valves.
